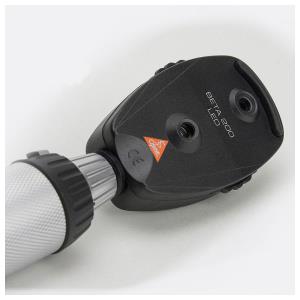

Set ophtalmoscope Heine BETA 200 LED

with rechargeable handle USB cable and power supply

Set ophtalmoscope Heine BETA 200 LED

with rechargeable handle USB cable and power supply

General information | Technical information | Standard equipment | Downloads |
Code:
Manufacturer code
Brand: HEINElink
Unit:
Availability:
heart_plus

1,091.96 £

(including VAT)
Price without VAT 895.05 £
info General information
assignment Technical information
work Standard equipment
save_alt Downloads

General information

The set ophtalmoscope Heine BETA 200 LED is the only one with an support element in alluminium. The optic components are perfectly inserted in an alluminium frame, which avoid movements and protect the device from damages.
The BETA 200 LED has an almost non-ended life LED (up to 100.000 hours), which doesn’t need substitution of the lamp.

• LED HQ
The new standard for LED illumination. Defines the intensity of the light, omogenity and color rendering in an optimal way for an accurate diagnosis. Red is red, blue is blue. The LED illumination is adapted for the optic system and provides at the same time a very bright and uniform illumination to get always an accurate diagnosis.

• Exclusive continuos control of brightness
Between 100% and 3% (patent pending), one-hand control.

• No widespread light thanks to the recessed observation window, treated several times with anti-reflex treatments, to ensure a secure diagnosis.

• Precise use of the device with one hand.

• The ergonomic shape adapt itself to the orbital area and glare the light.
The maximum efficiency of BETA 200 LED can be reached only with BETA rechargable handles and the wall transformer EN 100.

Standard equipment

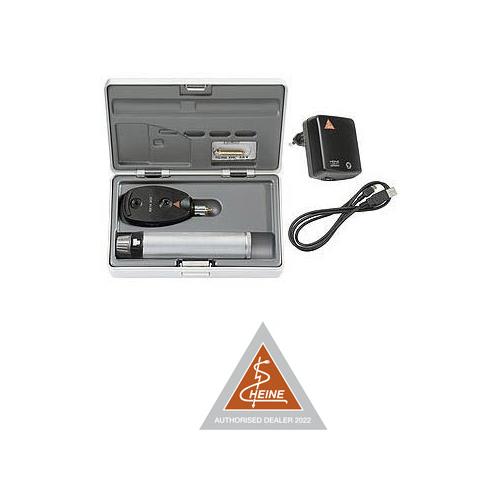

The set is composed by:
• Rechargeable handle with USB
• USB cable
• Head ophtalmoscope Heine BETA 200 LED
• Rigid case



Technical information

• Heine aspherical optical system

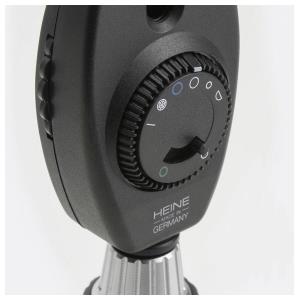

• Rekoss disk with 27 single lenses
+ unity valuesi: 1 – 10 15 20 40 D
- unity values: 1 – 10 15 20 25 35 D
• Usable both for large pupils and not dilate ones
• 6 diaphrams: slot, fixation star with polar coordinates, blue filter, big spot, small spot, semicircle
• Green filter

Downloads

Declaration of conformity
Declaration of conformity
