Gynex Professional

Blue Chicago

Gynex Professional

Blue Chicago

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Brand: EUROCLINIClink
Unit:
Availability:
heart_plus

5,173.54 £

(including VAT)
Price without VAT 4,240.61 £
Add to cart
Colour
metal apricot
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

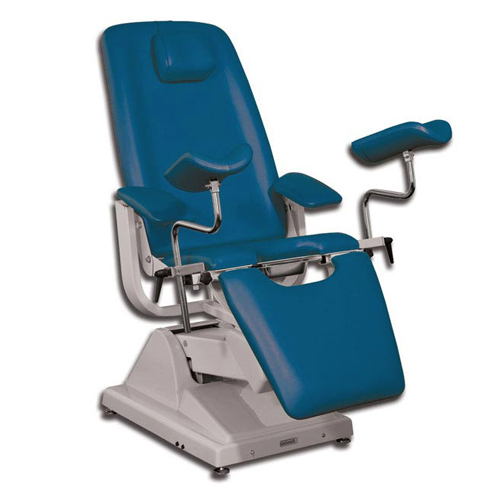

Gynex professional chair offers fuctionality, aesthetics, ergonomics. It can satisfy all patient and user needs for to a professional gynaecologic visit.

Gynex professional is provided with versatile accessories: back paper-roll dispenser, metal basin, chromed handles, leg-supports. With 3 engines allows, in addition to lifting, electric back-rest and leg-rest movements.

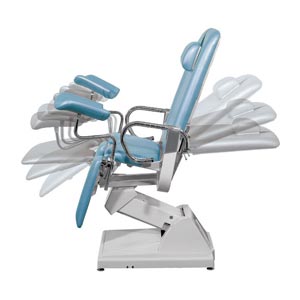

Thanks to the combined movement of backrest and seat by means of self-balancing system (operated by 2 silent low tension actuators of 1,000 N each one). Gynex Professional grants maximum comfort to the patient.

The upholstered armrests protect the patient in total relax, and are adjustable and removable. The back is supplied with adjustable in height and removable headrest. The big and soft legrest is adjustable in autonomy from all the other movements, with an automatic block mechanism.
The armchair is powered by a silent, low tension electric actuator, which allows and height move of 40 cm.
Commands are detected from pedal connected by cable.
GYNEX - created as gynecologycal armchair - can be easyly transformed into a classic medical bed.

Compatible with

• GYNEX STOOL - Green Vancouver

• Gynex stool without ring - Amsterdam orange

Standard equipment

• Padded leg-rest
• Paper-roll holder
• Metal basin

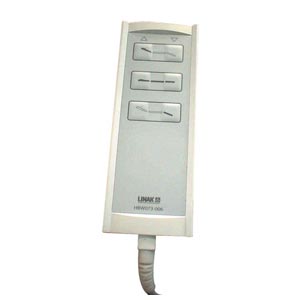

• Remote control



Technical information

• Power supply tension:230-50 Hz
• Motor tension: 24 V
• Lifting motor push: 6,000 N
• Backrest motor push: 2,500 N
• Lagrest motor push: - 2,500 N
• Lifting capacity: 180 kg
• Maxium power: 90 VA
• Fuser protection: 1.6 A

• Colour: blue Chicago

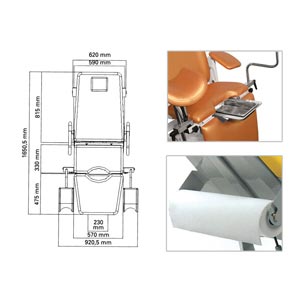

• Maximum length of the chair: 165.05 cm
• Maximum width: 92.05 cm

Downloads

User manual
Declaration of conformity
Accessories
