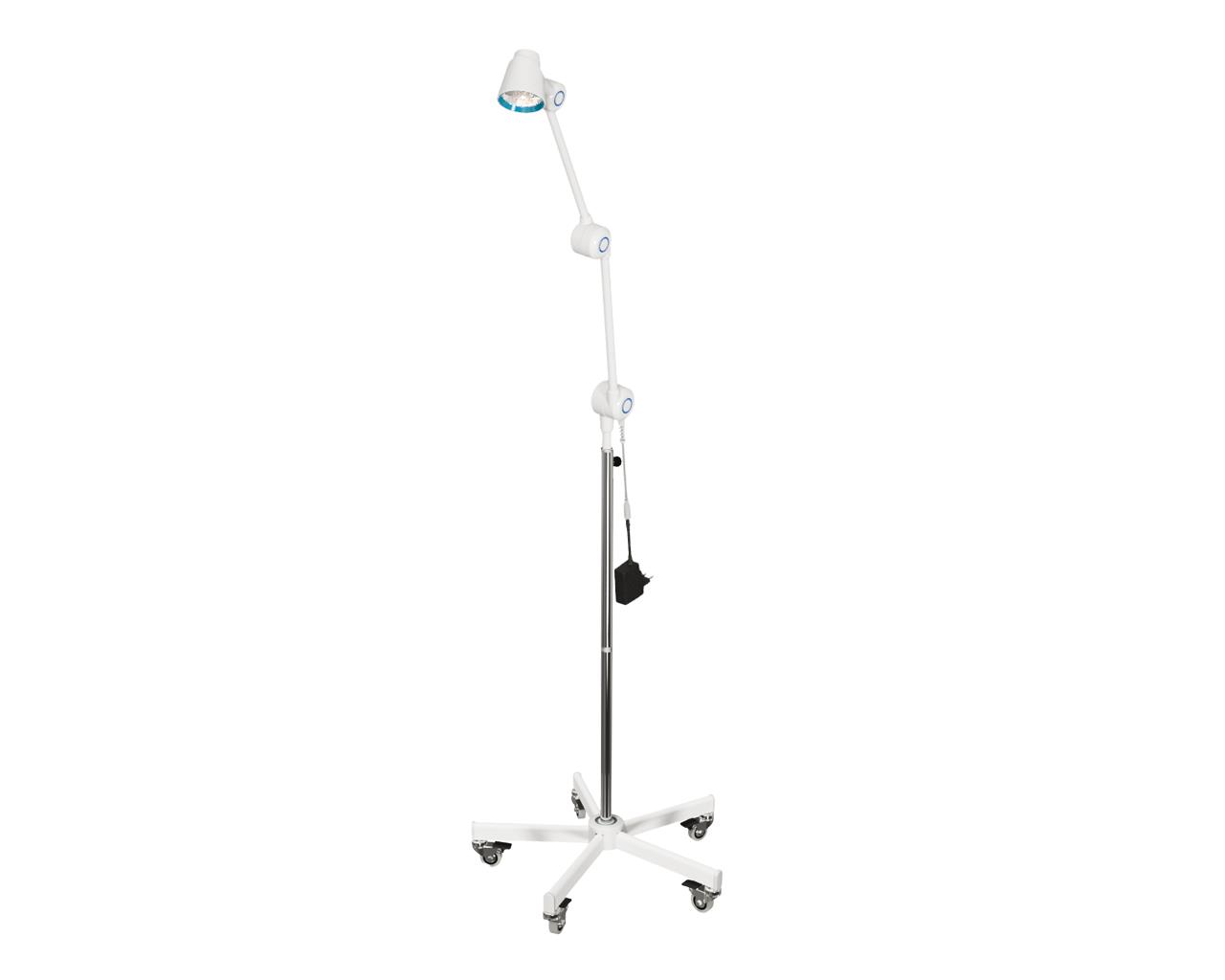

Alfa-Fix LED observation light

on wheeled pedestal

Alfa-Fix LED observation light

on wheeled pedestal

General information | Technical information | Compatible with | Downloads |
Code:
Brand: RIMSAlink
Unit:
Availability:
heart_plus

642.64 £

(including VAT)
Price without VAT 526.75 £
info General information
assignment Technical information
list Compatible with
save_alt Downloads

General information

The Alfa-Fix LED lamp is equipped with three LED light sources with optical lens system and polycarbonate protection shield.
Thanks to the three independent light sources, it is possible to reduce shadows and ensure a cylindrical depth light with reduced thermal radiation.
Each LED incorporates a resistance to ensure the continous operation of the lamp even in the rare cas of a failure to an LED.

Design
The new design makes the lamp extremely easy to operate and move, with an additional rotation of the reflector.

Touch control
The light intesity can be adjusted via a touch control button, which allows you to adjust it from 4 to 100%.

Interchangeable plugs
The transformer, integrated in the plug to give the arm greater lightness, is supplied with interchangeable plugs (UK, US, EU).

Compatible with

• Spare trolley for Alfa-Fix, Solenord, Solesud e Gimanord, Wood deluxe

Technical information

  • Type of lighting: LED
  • Consumption : 8 Watt
  • Life of the bulbs : > 60,000 hours
  • Light intensity at 50 cm : 60,000 lux
  • Light intensity at 1 m : 20,000 lux
  • Colour temperature ± 5% at 1 m : 4,500 K
  • Colour rendering index %: 94 Ra
  • Light field size at 50 cm : 150 Ø mm
  • External Ø of the reflector : 95 mm
  • Colour: white
  • Norms: IEC 60601-1
  • Marks: CE 93/42
  • Weight : 5 kg

Downloads

EU declaration
User manual
