Painted steel emergency trolley

small

Painted steel emergency trolley

small

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Brand: KARRELlink
Unit:
Availability:
heart_plus

2,012.34 £

(including VAT)
Price without VAT 1,916.51 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

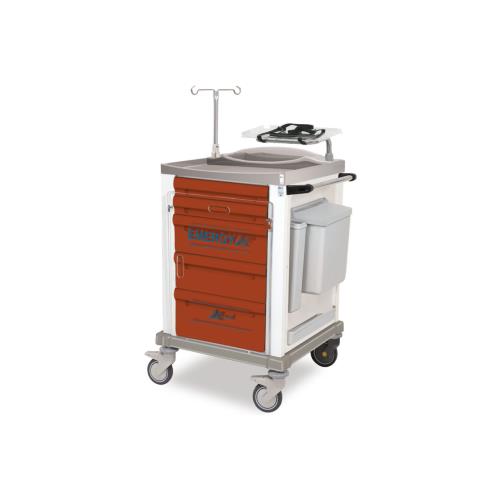

Professional, solid and sturdy emergency trolley with components in plastic material (technopolymer) painted with epoxy powders to obtain maximum lightness, maneuverability and ease of use.
  • Self-supporting and monocoque structure.
  • Upper part has large support surface in technopolymer plastic material to facilitate cleaning and disinfection.
  • Ergonomic push handle firmly attached on the right side of the trolley.
  • Front part designed for insertion of modular drawers: silent sliding of the drawers on guides with ball bearings, equipped with limit stops and designed for central locking with key.
  • Defibrillator plate has a plexiglass plate and tubular support in stainless steel, 360° rotatable and lockable every 10°, device can be locked by means of straps that can be adapted to any size.
  • Stainless steel IV stand adjustable in height with locking device.
  • Heart massage plate made of transparent plexiglass.
  • Five standard drawers made of plastic material.
  • Additional extractable worktop in technopolymer plastic material on the left side; built-in compartment complete with four shelves with front panel all made of technopolymer plastic material.
  • Four castors, anti-thread, pivoting of which 2 antistatic and 2 with locking system with lever, wheel and fork on ball bearings.

Compatible with

• Disposable numbered seals

• PARTITION KIT for drawer 45cm - 25 comparts

Standard equipment

Right side:

  • Waste container
  • Catheter or probes holder
  • Shelf with front panel
  • Recessed compartment
Left side:
  • Extractable worktop
  • Compartment with 4 shelves and front panel
Rear side:
  • Built-in gas bottle compartment with fastening straps
  • Bar with hooks for accessories

Upper part:

  • IV stand
  • Defibrillator tray



Technical information

  • Trolley sizes: 67 × 64 × h 100-160 cm
  • Drawers sizes:
    - 2 drawers 45 × 48.5 × h 7.5 cm
    - 2 drawers 45 × 48.5 × h 15 cm
    - 1 drawer 45 × 48.5 × h 22.5 cm
  • Defibrillator plate: 39 × 32 × h 2 cm
  • Diameter castros: 125 mm
  • Medical Device Class I

Downloads

Declaration of conformity
