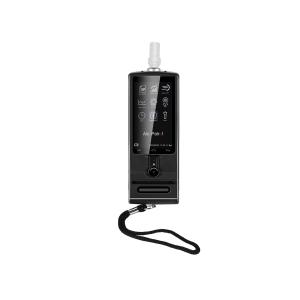

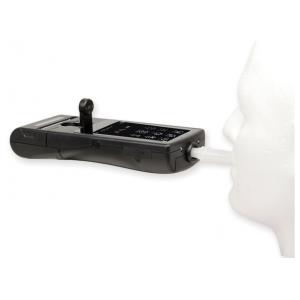

AP 338 professional alcohol tester with printer

General information | Technical information | Standard equipment | Compatible with |

Code:	109547
Brand:	GIMAlink
Unit:	1 pc.
Availability:

heart_plus

1,015.78 £

(including VAT)

Price without VAT 832.61 £

info General information

assignment Technical information

work Standard equipment

list Compatible with

General information

Professional fuel cell sensor breath alcohol tester with printer and touch screen. The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell's surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol.

Self recalibration: easy replacement of pre-calibrated module.

Compatible with

• Mouthpieces for professional ethylometer Fit 333 and AP 338

• Pre-calibrated module for professional ethylometer AP 338

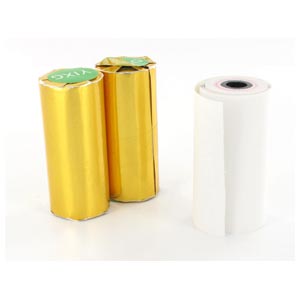

• Thermal paper roll for professional ethylometer Fit 333 and AP 338 - 10 rolls

Standard equipment

• Integrated printer

• 25 mouth pieces

• 1 large mouth piece

• Power supply 100-240 - 50/60 Hz

• USB car adaptor

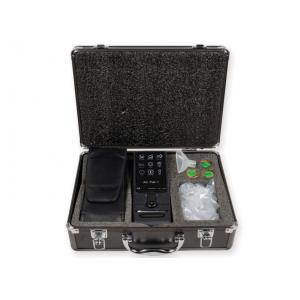

• Carrying pouch

• 4 rolls of paper

• Charger

• Manual (GB, IT)

Technical information

• Display: Colour 3.5" touch screen LCD

• Keyboard: Navigation key input with touch panel

• Power Supply: Rechargeable 7.4 V Li-ion battery

• Warm up: Chamber & Sensor warm up automatically

• Auto flow monitoring: Automatic flow detection

• Operating environment: -20 to +45°C (optimal 5 to 40°C)

• Data download: USB port (can export files as Microsoft Excel documents directly)

• Compatibility: Windows XP, 7, 8, 10

• Memories: 50,000 memories full test (driver name, vehicle number, inspector name, test result with print date and time, location, calibration data..)

• Measurement precision: Standard deviation ±0,025 mg/L or ±5% of the measurement

• Drift: typically <0,8% of the measurement value/month

• Size: 208 × 78 × 37 mm

• Weight: 360 g

• Calibration: by replacement of pre-calibrated sensor module

• Unit setting: mg/L, mg/100 L, %BAC, ‰BAC
