INVENTIS Flute Plus

Audio impedance meter

INVENTIS Flute Plus

Audio impedance meter

General information | Technical information | Standard equipment |
Code:
Brand: INVENTISlink
Unit:
Availability:
heart_plus

6,416.00 £

(including VAT)
Price without VAT 5,259.02 £
Add to cart
info General information
assignment Technical information
work Standard equipment

General information

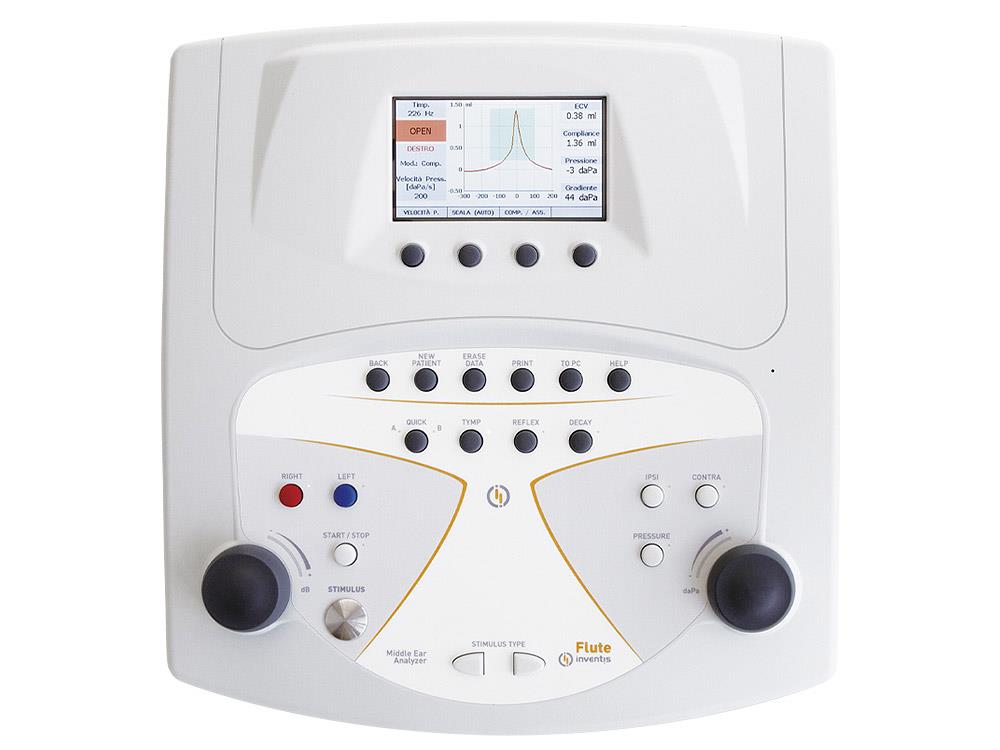

Flute is a diagnostic impedance meter capable of performing tympanometry and ipsi and contralateral stapedius reflex exams with speed and precision. Versatility of use, a very simple user interface, great reliability and small dimensions make Flute the ideal tool for many users, from audiologists to ENTs, from clinics to hospitals.

The probe
Flute offers an extremely light, small and strong metal probe, which can be disassembled and cleaned very quickly. The probe is connected to the control unit, through which the ear can be selected and the examination started.

Integration with Noah and Maestro
Simply plug Flute into a USB port on your computer (no drivers required) and you can transfer exam results into Maestro or Noah's database.

Standard equipment

  • Main unit
  • Control unit with probe
  • Shoulder support for probe control unit
  • Wrist support for probe control unit
  • TDH-39 headband or DD45 headband or insert earphone for contralateral pacing
  • Calibration cavity
  • Box containing assorted peduncles
  • Thermal paper (3 rolls)
  • Cover sheet
  • Medical power supply
  • USB cable
  • User Manual
  • Inventis software suites



Technical information

  • INVENTIS code: 10341
  • Classification: IEC 60645-5 / ANSI S3.39:Type 2

Probe tone
  • Frequency: 226Hz
  • Intensity: 85dB

Admittance measurement system
  • Measuring range: 0.2-8ml (at 226Hz)

Pressure system
  • Rotary type pump with infinite flow
  • Manual pressure adjustment available in tympanometry and acoustic reflex exams

Tests available
  • Automatic tympanometry
  • Manual tympanometry
  • Acoustic reflexes: fixed intensity, increasing intensity, automatic threshold search, manual
  • decay of the acoustic reflex
  • Quick test (seq. timp. + reflexes)
  • ETF: TM intact

Printer
  • Integrated thermal printer with 112 mm wide paper

Calibration
  • Duration: 12 months

PC interface
  • USB connection

Display
  • Color TFT-LCD
  • Size: 4.3 inches
  • Resolution: 480 × 272 pixels

Diet
  • Main unit: 6V
  • External power supply: 100-240V, 50-60Hz

Mechanics
  • Dimensions: 32 × 39 × 9cm
  • Weight: 2.4kg

Applicable standards
  • Impedance meter: IEC 60645-5 / ANSI S3.39
  • Calibration: ISO 389-2, ISO 389-1, ISO 389-2
  • Electrical safety: IEC 60601-1
  • EMC: IEC 60601-1-2

CE certified
  • Classification: Class IIA
