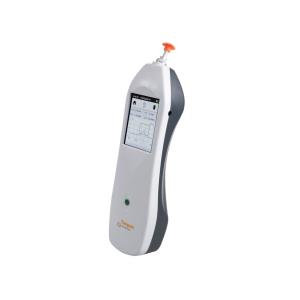

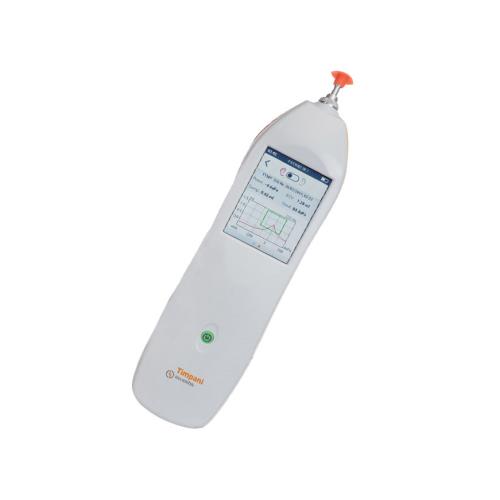

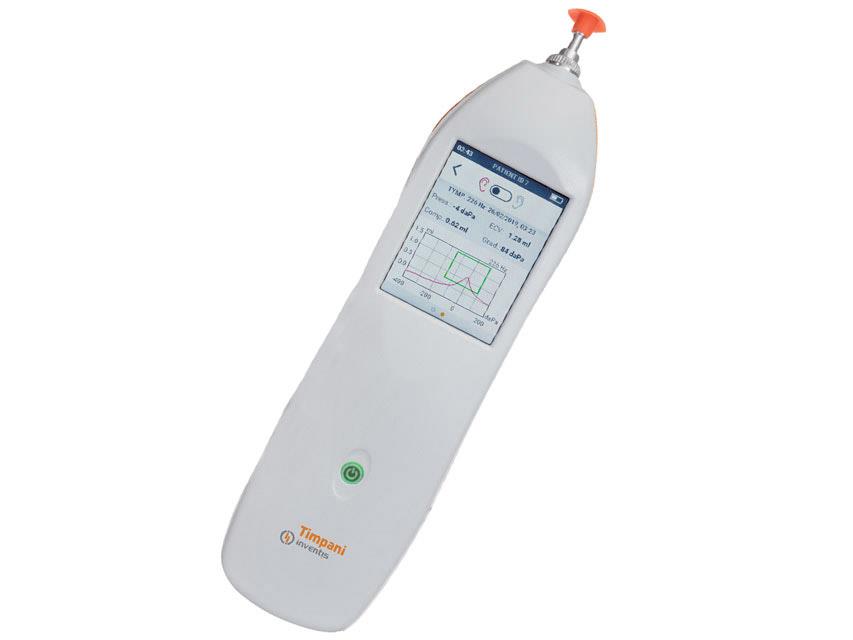

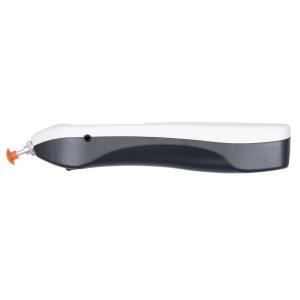

Timpani handheld tympanometer.

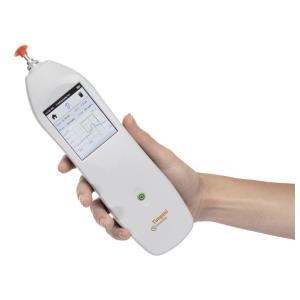

Handheld tympanometer Timpani is a lightweight, compact and powerful device, designed to conduct middle ear screening tests simply, swiftly and accurately.

The basic version of Timpani allows to perform automatic tympanometry exam using 226 Hz probe tone. Optional licenses allow acoustic reflexes test and screening pure tone audiometry. The device features a wide colour display with touchcreen interface.

Compatible with

• Bluetooth thermal printer for Timpani

• Charging base for Timpani

• Patient Response Button for Timpani

• REFLEX PLUS license for ipsilateral test with Timpani

• Screening pure tone audiometry license and earphones for Timpani

Standard equipment

• USB cable
• Medical grade power supply
• Assorted eartips

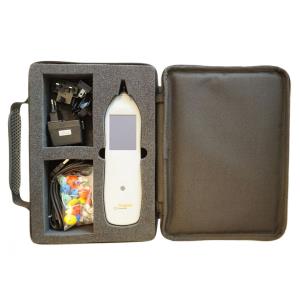

• Carrying case
• Firmware: GB, FR, IT, ES, PL
• Maestro software: GB, FR, IT, RU, ES, PL, PT, JP, CH, KR, DE, TR
• Manual: GB and IT



Technical information

Measurement system
• Probe tone: 226 Hz at 85 db SPl
• Comp. range: 0.2 to 8.0 ml at 226 Hz, 0.9 to 16.0 mmho at 1000 Hz
• Pressure range: from +200 to -400 daPa

Tympanometry
• Type of test: automatic tympanometry
• Start: automatic
• Scan rate: 400 daPa/sec

Acoustic reflex (only with REFLEX PLUS license for ipsilateral test with TIMPANI)
• Stimulation: ipsilateral at 226 Hz
• Available tests: autothreshold, fixed intensity
• Stimuli: 0.5, 1, 2 and 4 kHz (with reflex lic. Plus)
• Maximum int.: 100 db Hl (ipsi)
• Stim. duration: 1 sec

Audiometry (only with screening audiometer + headphones for TIMPANI)
• Intensity: -10 to 100 db HL
• Freq. range: 125-8000 Hz
• Input: pure tone
• Output: AC

Device specifications
• Memory: 50 patients
• Display type: color graphical with touch screen
• Display size: 2.8” / 43.2×57.6 mm
• Resolution: 240 × 320 pixels
• Power supply: lithium-ion rechargeable battery
• Battery life: >4 hours of continuous use
• PC interface: USB (driverless)
• Software: inventis maestro (compatible with Noah)
• Dimensions: 65 × 44 × 240 mm (2.6 × 1.8 × 9.5 inches)
• Weight: 340 g / 12 oz
• Standards:
- Imped.: EN 60645-5/aNSi S3.39, type 2/3
- Pta: EN 60645-1/aNSi S3.6, type 4/4
- Safety: EN 60601-1 - Emc: EN 60601-1-2
• classification: Class II A (93/42/EEC)
