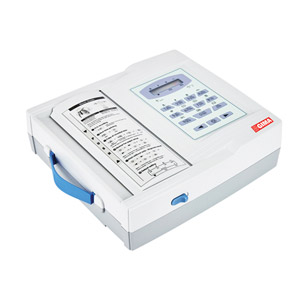

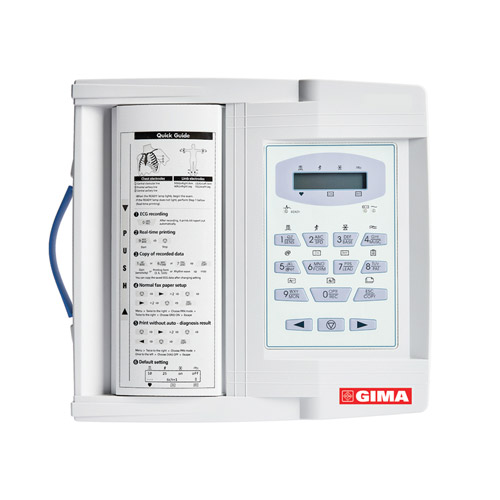

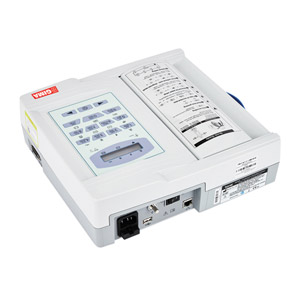

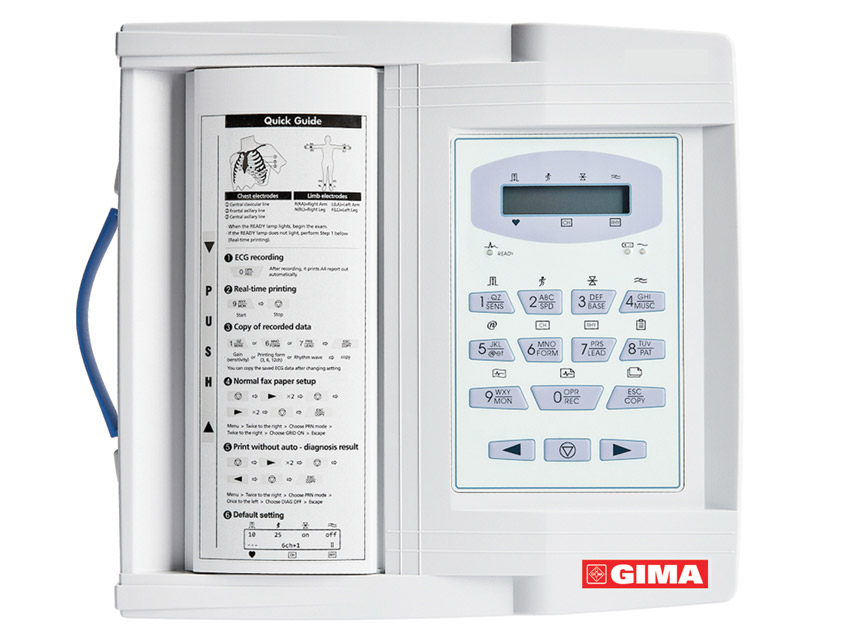

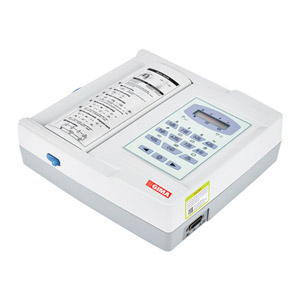

ECG Cardiogima 12

12 leads, 3/6/12 channels, interpretative

ECG Cardiogima 12

12 leads, 3/6/12 channels, interpretative

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Manufacturer code
Brand: GIMAlink
Unit:
Availability:
heart_plus

999.19 £

(including VAT)
Price without VAT 951.61 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

Cost effective 12 channel resting ECG recorder without performance compromise. The simultaneous record of 12 channels has a high diagnostic value, all the 12 channels are shown at the same time.

Main features:
• one touch operation for analyzing, storing and printing result
• 12 leads simultaneous 10-second resting ECG
• over 130 kinds of interpretation results based on Minnesota code
• wide paper printing: A4
• combined output of all relevant curves, patient data, date, time and instrument settings
• PC Connections: connection to PC with LAN to submit recorded ECG signal to other specialist for evaluation (only a modem is needed)
• ECG filing system: a fully configured PC-based software enables to record, print, change the settings of ECG’s and save them in JPEG, PDF, XML format, which ensure compatibility with most EMR package
• rechargeable battery (accessory not included) with 6 hour capacity

Internal software and print in GB, FR, IT, ES, DE, RU, TR, PL, PT, RO, KR.
Free software upgrade by USB.

Compatible with

Standard equipment

• Software PC (GB, IT)
• Patient cable - 10 leads
• LAN cable
• 4 limbs electrodes
• 6 chest electrodes
• 1 thermal paper roll
• Power supply cable
• ECG gel tube (250 ml)
• User manual (GB, IT)



Technical information

Physical features
• Dimension: 200 × 300 × 97.5 mm Approx 3 kg

Technical data
• Recording channel: 3, 6, 12 channel and 1 channel (60 sec.)
• Sensitivity: 5, 10, 20, auto (I~aVF: 10, W1~V6: 5) mm/mV
• Printing speed: 12,5; 25; 50 mm/s
• Filters:
- AC (50/60 Hz, -20 dB or better)
- Muscle (25~35 Hz, -3 dB or better)
- Base line drift (off 0.05, 0.1, 0.2 Hz - 3 dB or better)
- Low pass filter (off, 40 Hz, 100 Hz, 150 Hz)
• Sampling rate: analysis 500 samples/sec, digital 8,000 samples/sec
• Display: 2×16 character LCD display
• LCD display: Sensitivity, speed filter status, HR, Printing form, rhythm lead
• LED indicator: Signal quality, power source, battery
• Keyboard: Membrane keyboard, alphanumeric and symbol available
• Patient data: ID, name, age, sex, height, weight
• Basic measurement: Heart rate, PR, QRS, QT/QTc, P-R-T axis
• Recorder:
- Thermal print head, thermal paper roll
- Report papers: A4: 215×297 mm (8.5”x11.7”)
• Resolution: vertical: 8 dots/mm, horizontal: 16 dots/mm

Electrical features
• Electrical:
- Internal noise: 20 µV (p-p) max input impedance: >50MO
- Input voltage range: ± 5 mV CMRR: greater than 105 dB
- DC offset voltage: = ± 400mV
- Patient leakage current: < 10µA
- Frequency response 0,05~150 Hz within -3 dB
- Isolated, defibrillation and ESU protected
• Power supply: AC or rechargeable lithium-ion 11.1 V 2600 mA battery (optional)
• Power requirement: 100-240 Vac, 50/60 Hz, 1.0-0.5 A
• Power consumption: 60 W max
• Battery capacity: 6 hour of normal use (not included)
• Communication: LAN
• Safety: Class I, Type CF

Normatives and origin
• Conformity: CE, FDA, KFDA, CFDA, NCC
• Made in Korea
