Ecg Contec 1200G

12 leads, 3/6/12 channels, auto-interpretation, with display - software included

Ecg Contec 1200G

12 leads, 3/6/12 channels, auto-interpretation, with display - software included

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Brand: CONTEClink
Unit:
Availability:
heart_plus

847.48 £

(including VAT)
Price without VAT 807.12 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

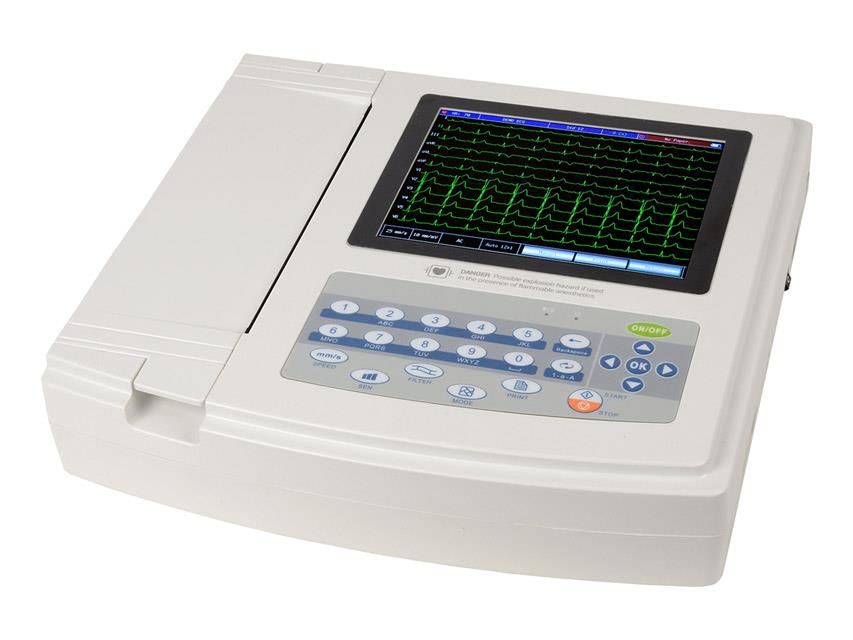

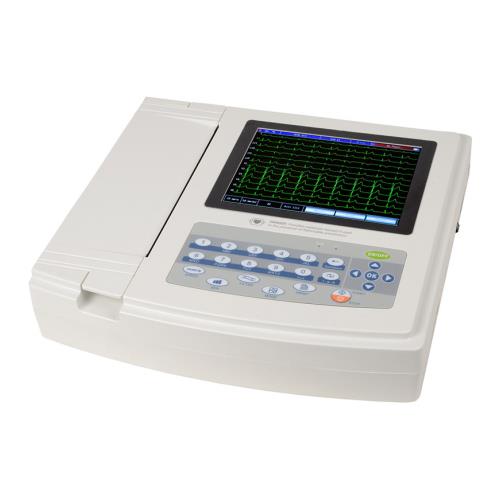

Electrocardiograph Contec 1200G with 12 leads and 3/6/12 channels view and print, PC connection and software.

• 8” TFT display, 800×600 dots high resolution colour LED backlight
• Simultaneous 12 leads acquisition and display
• Digital signal technique, AC filter, baseline filter, EMG filter
• Auto-analysis and auto-interpretation
• Multi-mode display and printing, such as 12, 6+1 (rhythm), 6, rhythm 12, rhythm 10, rhythm 8, rhythm 6. Manual, Freeze etc
• 0.5 built-in lithium rechargeable battery
• 2 USB and LAN Socket for uploading data to PC
• Built-in flash memory. Stores more than 1,000 files
• Compatible up to Windows 10

Compatible with

• Adaptor for single use electrodes

• Compatible thermal paper for ecg Contec 1200G and 1212 G - 210 mm × 30 m

• Disposable pre-gelled tab electordes

• Disposable TNT electrodes Ø 50 mm

• ECG gel - 1 bottle of 250 ml

• Universal adapter with 4 mm socket

• USB cable for Contec 300G, 600G, 1200G

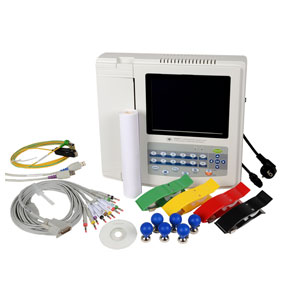

Standard equipment

• 1 ECG cable
• 1 ground wire
• 1 set limb electrode clamp
• 1 paper roll
• 1 set chest electrodes
• Power connection
• USB connection
• Rechargeable battery
• Software PC: GB, FR, IT, ES, PT, PL, SI, TR, RU, KZ, CN
• Software ECG: GB, FR, IT, ES, PT, PL, SI, TR, RU, KZ, CN
• Manual: GB, IT



Technical information

• Input way: Floating and defibrillation protection
• Lead: Standard 12 leads
• Patient leak current: < 10 µA
• Input impedance: = 50 Megaohm
• Frequency response: 0.05 - 150 Hz (-3 - + 0,4 dB)
• Time constant: = 3.2 s
• CMRR: >60 dB, > 100 dB (adding filter)
• EMG interference filter: 25/35 Hz (-3 dB)
• Thermal paper: 210 mm × 20 m high-speed
• Paper speed:
- Auto and rhythm record: 25, 50 mm/s, ±5%
- Manual record: 5, 6.25, 10, 12.5, 25, 50 mm/s, ±5%
• Sensitivity selections: 2.5, 5, 10, 20, 40 mm/mV, ±5%. (Standard sensitivity is 10 mm/mV ±0.2 mm/mV.)
• Auto record: Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing.
• Rhythm record: Record setup according to rhythm record format and mode, automatically measuring and analyzing.
• Manual record: Record setup according to manual record format, manually changing leads.
• Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
• Product safety type: Class I CF defibrillation and pacing protection
• Size: 334 × 320 × 85 mm
• Power:
- AC: 100-240 V, 50/60 Hz
- DC: 14.8 V, 3700mAh rechargeable lithium battery

Downloads

User manual
Accessories
