CARDIONICA™ 1 channel ECG

with AFib and Bluetooth

CARDIONICA™ 1 channel ECG

with AFib and Bluetooth

Code:
Brand:
Unit:
Availability:

205.23 £

(including VAT)

Price without VAT 168.22 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

CARDIONICA™  by MIR is a medical-grade single-lead ECG, ideal for heart rhythm check and immediate detection of arrhythmias, atrial fibrillation, tachycardia, bradycardia, as well as stroke prevention.
Display with coloured LED indicators and internal memory up-to 100 tests. Noise reduction and motion artefact detection.

One minute test: heart rhythm tracking in one minute, everywhere, with the accuracy of a clinical setting.

Real time ECG: immediate detection of possible heart problems.

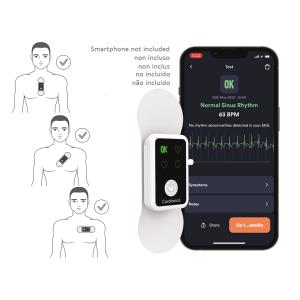

Stand alone or via Ap
p: applying the adhesive electrode on the chest, it can be used in stand-alone mode or connected to smartphone via Bluetooth.

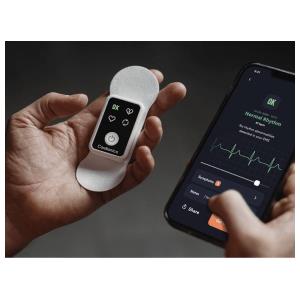

Free Cardionica App for data sharing
: it allows to track personal ECG and to share reports in PDF and EDP format via E-mail, WhatsApp and other Apps.

Certified accuracy
: ECG analysis in line with 2020 AF guidelines (ECG, P-wave, RR irregularity), accurate in compliance with international Standard IEC 60601-2-47.

Standard equipment

Supplied with 4 reusable electrodes, button battery and multilingual manual.



Technical information

  • Lead: single lead
  • Sampling rate: 250 S/s
  • Current capacity: 210 mAh
  • CMRR: 100 dB 50Hz
  • Memory: 100 ECG, 1 minute each
  • Battery: 300 uses or 2 years
  • Accelerometer: tri-axial accelerometer
  • LEDs: green, orange, red
  • Protection: internally powered, type BF
  • Input impedance: > 10 MOhm
  • Power supply: lithium battery 3V (CR2032)
  • Size: 57×37×15 mm
  • Weight: 20 g (battery included)
  • Medical Device Class IIa MED 9826
