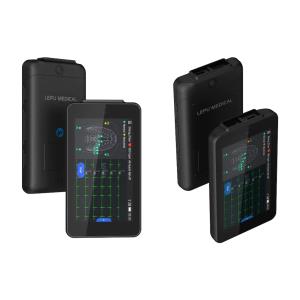

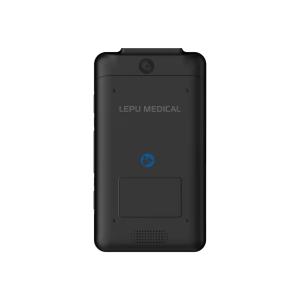

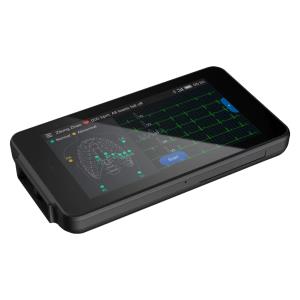

PCECG-500 Pocket ECG monitor

6/12 leads

PCECG-500 Pocket ECG monitor

6/12 leads

General information | Technical information | Standard equipment | Downloads |
Code:
Brand: LEPU MEDICALlink
Unit:
Availability:
heart_plus

943.23 £

(including VAT)
Price without VAT 773.14 £
info General information
assignment Technical information
work Standard equipment
save_alt Downloads

General information

Portable, lightweight and easy to use ECG monitor, PCECG-500 provides collection, analysis, storage and transmission of 12-lead ECG information, which in combination with the Glasgow algorithm, ensures complete and immediate analysis.
Automatic pacing detection and marking.

  • Glasgow algorithm: provides an automatic analysis of the acquired ECG waveforms and output measurement values and diagnostic results
  • remote reporting and data transfer via E-mail and Wi-Fi transmission
  • connection to external printer via Wi-Fi
  • HD camera
  • more than 24 hours continuous working time

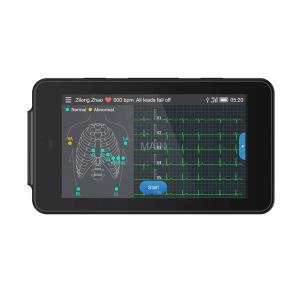

  • 4.46” LCD colour touch screen
  • automatic and R-R mode
6/12 lead waveform supports synchronous acquisition and display of 6/12 lead waveform, as well as heart rate detection and indication of poor electrode contact.

Standard equipment

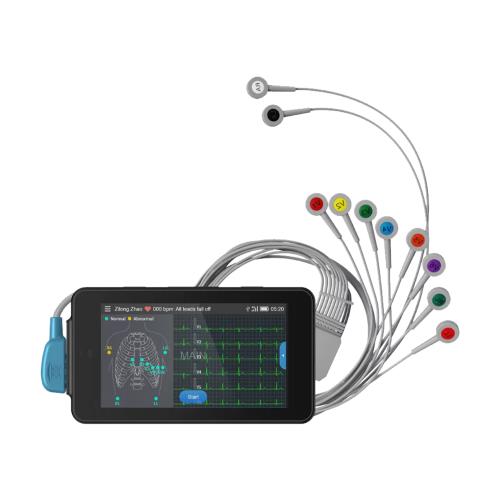

  • 1 ECG lead wire
  • U-Disk (type C & USB port)
  • Disposable adult ECG electrodes (2 sets of 10 pcs)
  • USB cable
  • Rechargeable lithium-ion battery
  • Multilingual manual



Technical information

  • Method: peak-peak detection
  • Measurement range: 30-300 bpm; ± 1 bpm
  • Leads: 6/12-lead synchronous acquisition and analysis
  • Sensitivity: 2.5, 5, 10, 20 mm/Mv; ± 5%
  • Input impedance: =50MO (10Hz)
  • Sampling
    - rate: 2000 samples/sec
    - modes: pre-sampling, real-time sampling, periodic sampling, triggered sampling
  • CMRR: =100dB (AC filter on)
  • Frequency response: 0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz
  • Time constant: =3.2s
  • Filter:
    - AC filter 50Hz, 60Hz, Off
    - EMG (Electromyography) filter 25Hz, 35Hz, 45Hz, Off
    - ADS (Anti-Drift System) filter 0.05Hz, 0.32Hz, 0.67Hz
    - Lowpass filter 75Hz, 100Hz,150Hz, Off
  • Speed: 5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%
  • Power supply: built-in rechargeable lithium-ion battery, 3.8V 6000mAh
  • Charging time: 8 hours
  • Display: 4.46" colour LCD touchscreen, 480×854 pixels resolution
  • Size: 13,4 × 7,4 × 1 7 cm
  • Weight: 250 g (including battery)
