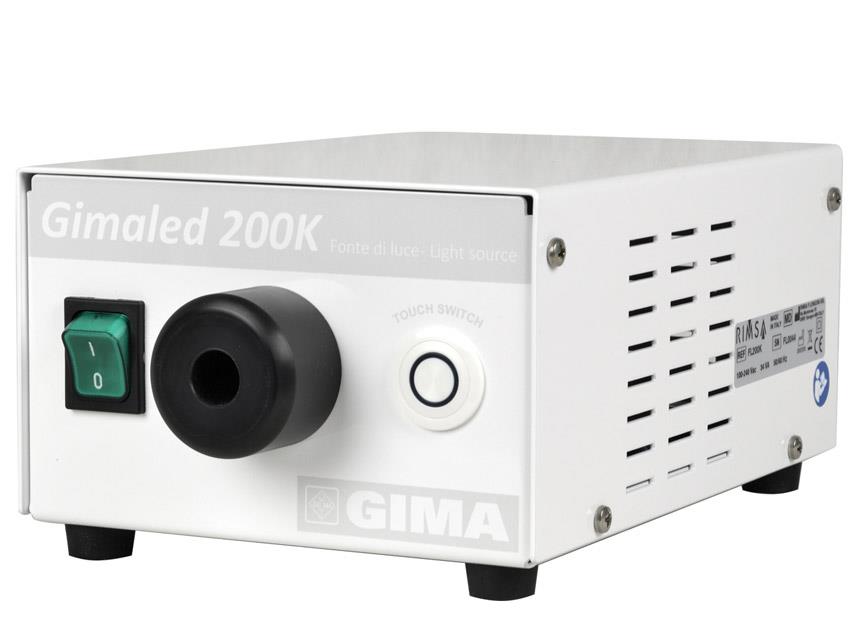

Gimaled 200K light source

General information | Technical information | Standard equipment | Downloads |

Code:	110815
Brand:	GIMAlink
Unit:	1 pc.
Availability:

heart_plus

849.94 £

(including VAT)

Price without VAT 696.67 £

info General information

assignment Technical information

work Standard equipment

save_alt Downloads

General information

Light-generating light source for endoscopic instruments. The product is an EM Electromedical equipment, therefore falling within the field of application of the IEC 62353 standard.

Standard equipment

• Power cord with adapters for various plugs

Technical information

Technical data

• Illuminance at 2.5 cm: 147,000 lux

• Color temperature: 5,000 K

• Color rendering index: 89

• Rg: 54

• Maximum irradiance (W / mq): 488

• Irradiance / illuminance (mW / mqx): 3.32

Electrical connection data

• Primary alternating voltage: 100-240 V

• Frequency: 50/60 Hz

• Absorbed power: max 18W

• Light source: n. 16 LEDs

• LED life: 60,000 h

• Light intensity control: 4-100%

General data

• Regulation: 2017/745

• Class I Medical Device

• IEC 60601-1 classification: Class II

• Color: RAL 9003

• IP classification: IP20

• Conditions of use: continuous operation

• Electrical isolation means: built-in electrical plug

Dimensions

• Weight: 3 kg

• Dimensions: 27 × 17 × 11 cm

Downloads

EU declaration

User manual
