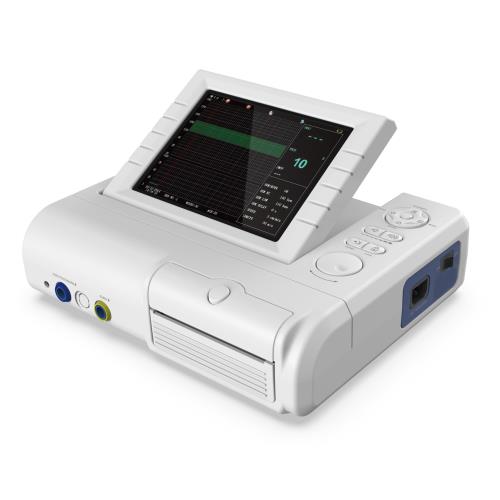

Gima CMS800G foetal monitor

Gima CMS800G foetal monitor

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Manufacturer code
Brand: GIMAlink
Unit:
Availability:
heart_plus

1,006.32 £

(including VAT)
Price without VAT 824.85 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

Foetal monitor provides different configurations according to different user requirements: FHR1 (Ultrasonic Channel I), FHR2 (Ultrasonic Channel II), TOCO, FMOV (Fetal Movement Marker). Continuous monitoring of fetuses during perinatal period, which provides reference data for clinical use.

Results can be registered by built-in recorder for continuous or intermittent records.
It can be used individually or connected with PC through RJ45 Interface for the purpose of central monitoring.
For professional medical staff in hospitals, clinics and other professional medical institutions.

Features:
  • 8.0"screen colour LCD display, rotatable screen to 60°
  • clearly display of the patient data and curve
  • manual/auto records fetal movement
  • sound and colour remind of high and low fetal heart rate
  • continuous 24-hour real-time monitoring function
  • continuous 12-hour patient curve and data storage, playback and print
  • picture lock function
  • 12 crystal board band pulsed wave transducer
  • end of printing prompt sound
  • manual marking prompt sound
  • capable of automatic scoring (Fischer, NST and Krebs)
  • external USB flash disk, SD card to store data and external USB flash disk upgrade program
  • extra-long life, high-resolution built-in thermal recorder
  • built-in rechargeable batteries, insure that could still working normally for more than three hours after the power supply xbreaking off

Compatible with

• 3 in 1 probe for Gima CMS800G foetal monitor

• Trolley for monitor

• Twin probe for Gima CMS800G foetal monitor

Standard equipment

  • 3 in 1 probe
  • Power supply
  • 2 abdomen belts
  • Ground wire
  • 2 record papers
  • User manual



Technical information

  • Size: 32 × 26 × h 8 cm
  • Weight: 3 kg
  • Display: 8" colour LCD display (800×600), 60 degree foldable
  • 3 channels: FHR1, FHR2, UC
  • Thermal array printer: record paper two-double type Z size 112×100 mm paper speed: 1, 2, 3 cm/min
  • Power supply: AC 100V~240V, 50/60Hz
  • Li-ion battery: rechargeable, 7.4V, 5000 mAh
  • External link: RJ45, USB
  • Foetal heart rate: 1.0 MHz ± 10% output beam intensity: < 20 mW/cm2
  • FHR range: 50 ~ 240 bpm / resolution: 1 bmp / accuracy: ± 2bpm
  • Uterine contraction: passive strain gauge / TOCO range: 0 ~ 100% / resolution: 1%
  • Auto score analysis: capable of automatic scoring (Fischer, NST and Krebs)


THERMAL PRINTER RECORD CONTENTS
Hospital, bed No., name, pregnancy weeks, patient No., paper speed, date, time, FHR data and wave, contraction data and wave, foetal move times and mark etc..

Downloads

CE certificates
User manual
Declaration of conformity
