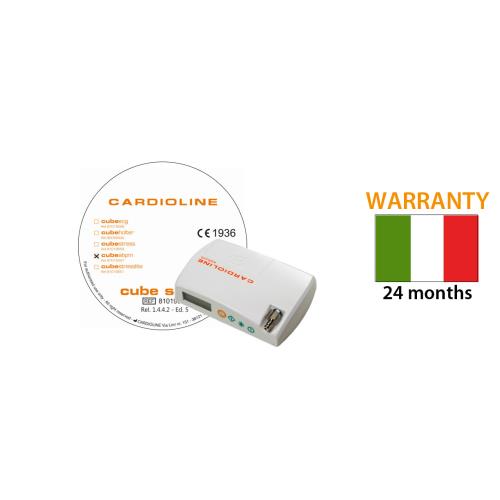

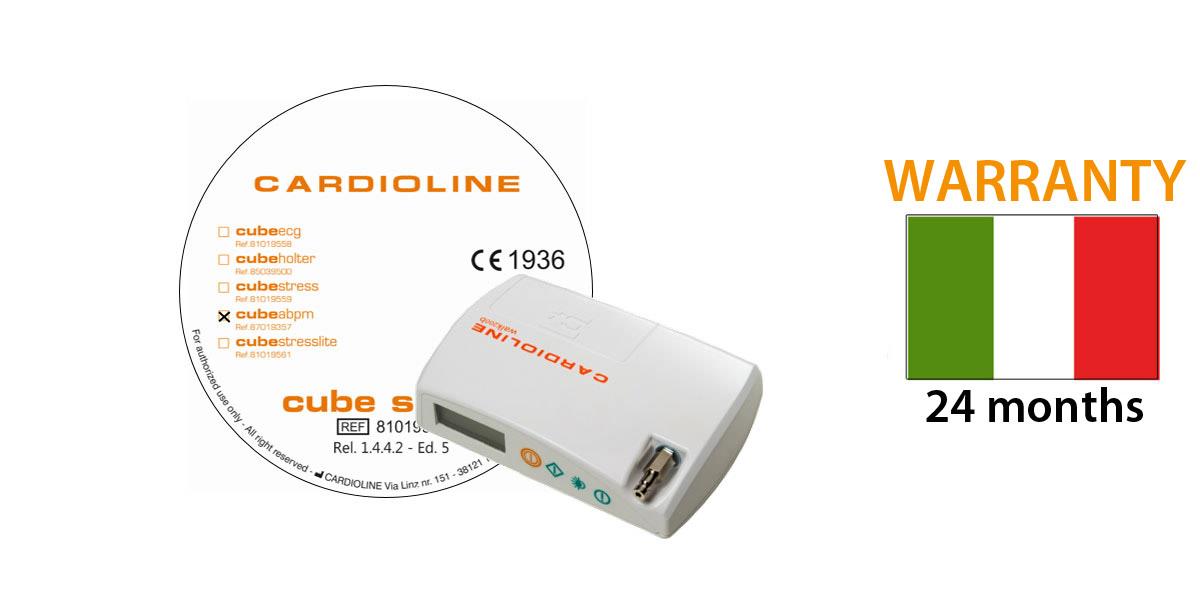

ABPM holter Cardioline walk200b package with software cubeabpmHolter pressorio Cardioline walk200b package con software cubeabpm

Code:	4200183
	87019308
Brand:	CARDIOLINElink
Unit:	1 pc.
Availability:

heart_plus

1,844.99 £

(including VAT)

Price without VAT 1,512.29 £

info General information

assignment Technical information

work Standard equipment

list Compatible with

save_alt Downloads

General information

walk200b

walk200b is a recorder to monitor blood pressure during 24 hours. walk200b is easy to use, light and compact to maximize patient's comfort.

Main features of walk200b:

• LCD display to view recorded values and service messages, functionalties disabled by software;

• Bluetooth connection to PC;

• adaptive algorithm for cuff inflation;

• event marker and start/end awake/sleep periods function;

• compact and silent.

walk200b is compatible with cubeabpm sotware.

cubeabpm

cubeabpm is the complete solution to manage the holter exam (ABPM or MAPA). cubeabpm has, in one application, alle the tipical procedures of an ABPM exam: from managing the recorder to download the data to PC and their automatic saving, from automatic analysis to revision, up to printing the final report and export of it in electronic format. cubeabpm can be used on a single PC or connected to a many different cube hosts in a working network.

Main features of cubeabpm:

1. User Interface

cubeabpm uses the graphic potential of Windows (compatible up to W10), guiding even the less experienced users to the correct execution of an ABPM exam. cubeabpm has 6 main pages, each one dedicated to a characteristic aspect of the exam:

• the measures page shows the chronogram of the exam and the relative table for the measurements of systolic, diastolic, average and heart rate.

• the average page shows the averaged values of the program variables, represented in the form of a chronogram and cakes

• the statistics page offers all the statistical tools for the analysis of the exam.

• the comparison page allows you to compare two or more exams belonging to the same patient, synchronizing them according to different criteria.

• the mycube page is entirely customizable by the user and is therefore composed of the freely chosen charts or tables from a list.

• the report page allows you to write conclusions, configure the final print document or choose one of those already stored in the system and then proceed to print.

2. Usage profile

The operator can choose to use all the views provided by cubeabpm or can select and use only those that are closest to his needs and his analysis philosophy.

3. Automatic analysis

The automatic analysis is based on statistical calculations made starting from the measurements made by the recorder and presents these data in different graphic forms, depending on which clinical aspect you want to emphasize. cubeabpm presents, already at the first opening of the exam, a complete and detailed report of the measurements made.

4. Memorization of exams

cubeabpm integrates a database dedicated to the storage and organization of the acquired exams. cubeabpm places at the center of the system the patient for whom a virtual medical record is created in which all the examinations performed by cube workstations are automatically stored.

5. Exam management

cubeabpm offers a system of predefined views on the database which can be accessed with dedicated icons on the toolbar: the operator can therefore quickly access the exam list to be reported, proceed to reading and then to the signature of each of them. The program also integrates a long-term archiving function of the database, which allows the exams already analyzed to be transferred to an external support (CD, DVD, etc.), always keeping the database online, for a brief consultation, patient records and global data of the historicized exam. cubeabpm also allows you to carry out advanced searches using the patient's registry, examination or acquisition device as search parameters.

6. Management of examination preparation and discharge procedures

cubeabpm offers an innovative management of the preparation and discharge procedures to the exam PC. Through guided procedures the operator concludes successfully and without wasting both the preparation of the recorder and the download of the exam to a PC, correctly managing the patient's personal data, entering indications and therapies, programming the duration of the exam and e of the type of registration profile to use.

7. Sharing the database with other cube stations

cubeabpm was born with the ability to share the database with other cube workstations. Through this feature it is possible to optimize the work of your clinic-ward according to your clinical needs. For example, it is possible to dedicate workstations to the discharge of the exam, others to the analysis or the execution of different diagnostic methods such as stress test, Holter ECG and ECG at rest.

walk200b

walk200b is a recorder to monitor blood pressure during 24 hours. walk200b is easy to use, light and compact to maximize patient's comfort.

Main features of walk200b:

• LCD display to view recorded values and service messages, functionalties disabled by software;

• Bluetooth connection to PC;

• adaptive algorithm for cuff inflation;

• event marker and start/end awake/sleep periods function;

• compact and silent.

walk200b is compatible with cubeabpm sotware.

cubeabpm

Main features of cubeabpm:

1. User Interface

• the measures page shows the chronogram of the exam and the relative table for the measurements of systolic, diastolic, average and heart rate.

• the average page shows the averaged values of the program variables, represented in the form of a chronogram and cakes

• the statistics page offers all the statistical tools for the analysis of the exam.

• the comparison page allows you to compare two or more exams belonging to the same patient, synchronizing them according to different criteria.

• the mycube page is entirely customizable by the user and is therefore composed of the freely chosen charts or tables from a list.

• the report page allows you to write conclusions, configure the final print document or choose one of those already stored in the system and then proceed to print.

2. Usage profile

The operator can choose to use all the views provided by cubeabpm or can select and use only those that are closest to his needs and his analysis philosophy.

3. Automatic analysis

4. Memorization of exams

5. Exam management

6. Management of examination preparation and discharge procedures

7. Sharing the database with other cube stations

Compatible with

• Alkaline Varta batteries - stilo AA

• Bag for telemetry monitor

• Disposable under-cuff band Dispo band

• Varta alkaline batteries - pencil AA

Standard equipment

• Standard adult cuff

• cubeABPM - software

• Pouch for walk200

• 2 alkaline batteries AA LR06 1,5 volt

• User manual

• Cardioline warranty: 24 months

Technical information

Technical features of walk200b

• Range of blood pressure: sistolic 60-290 mmHg - diastolic: 30-195 mmHg

• Accuracy: ± 3 mmHg

• Range of static pressure: 0-300 mmHg

• Range of frequency: 30-240 beats per minute

• Method: oscillometric

• Range of measurement: 0,1,2,4,5,6,12 or 30 measurements/hour

• Measurement's protocol: 2 groups of range, editable

• Memory: 300 measurements

• Batteries' life: > 300 measurements

• Working temperature: from +10°C to +40°C

• Woking umidity: from 15% to 90%

• Dimension: 128 × 75 × 30 mm

• Weight: approx 240 g batteries included

• Power supply: 2 rechargeable batteries Ni-MH of 1,2 V each and min. 1500 mAh (AA) or 2 alkaline batteries 1,5 V ( AA)

• PC interface: Bluetooth (Class 1 / 100 m)

Technical features of cubeABPM software

• Analysis mode: Interactive with the possibility of analyzing and reviewing the exam through the use of chronograms, tables, histograms, cakes. Available tools for defining custom thresholds and analysis periods

• Color coding: Own for each program variable: systolic pressure, diastolic pressure, average pressure, heart rate.

• Printing document: Fully customizable print document. Possibility to memorize a large number of models. Document printing in both black and white and color

• Track storage: automatic in the database, historicization of the optional DVD in the SW package.

• Export final document. Export or e-mail the final document in PDF or XML format.

• Network connection: Possibility of network connection and data base sharing with other cube stations.
