New multiparameter monitor CMS 8000

ECG, RESP, SpO2, NIBP, double channel TEMP

New multiparameter monitor CMS 8000

ECG, RESP, SpO2, NIBP, double channel TEMP

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Brand: CONTEClink
Unit:
Availability:
heart_plus

758.27 £

(including VAT)
Price without VAT 722.16 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

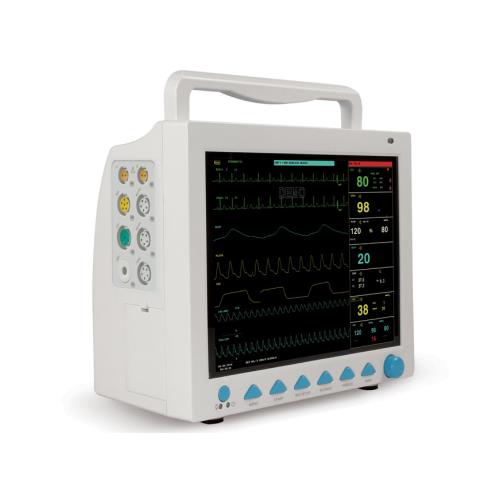

Multiparameter monitor with LCD colour display, 12,1” TFT, with double chance to detect TEMP: skin (probe included) or rectal (not included).

• Standard parameters: ECG, RESP, SpO2, NIBP, TEMP, PR;
• Adult/children/newborn measurement mode
• 8 channel ECG view
• Simultaneous view of 7 leads ECG
• Anti-movement and anti-interferences environment light SpO2 digital technology
• Manual/automatic/continous NIBP measurement mode
• Standard/OXY - graph/Trend-graph/bigger text and bed view interface
• Integrated rechargeable lithium battery
• Optional printer

Without DC 12-18 V connector with allows to use it on transport veichles (es: ambulances).

Compatible with

• Cuff for GIMA ABPM blood pressure monitor - infant

• Cuff for GIMA ABPM blood pressure monitor - pediatric

• Extension for finger sensors for new CMS8000

• SpO2 newborn sensor for pulsoximeters SAT-500, OXY 200 (old model) and OXY 50

• SpO2 probe for new CSM 8000 and Oxy200 - adults

• SpO2 probe for new CSM 8000 and Oxy200 - pediatric

• Thigh for GIMA ABPM blood pressure monitor

• Trolley for monitor

Standard equipment

• SpO2 adult probe
• NIBP adult cuff
• NIBP extensible tube
• Skin temperature probe
• Power cable
• 5-leads ECG cable
• ECG electrodes
• Rechargeable lithium battery
• Manual (EN, IT, ES)



Technical information

ECG
• 5 leads, double channel
• 3 leads, single channel
• Scanner speed: 12,5 mm/s 50mm/s
• ST segment monitoring
• Alarm interval and measurement: -2.0 mV

RESP
• Method: R-F (RA-LL) impedence
• Alarm interval and measurement: 0-150 rpm
• Apnea alarm: 10-40 sec

NIBP
• Method: oscillometric
• Mode: manual/automatic/continous
• Measurement interval in automatic mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 min
• Continous mode: 5 min
• Measurement alarm: 10-270 mmHg

SpO2
• Interval and alarm: 0-100 %
• Accuracy: 70-100% ±2%

PR
• Interval and alarm: 30-250 bpm

TEMP
• Channels: double
• Interval and alarm: 0-50 °C
• Power supply: 110-240 V - 50/60 Hz
• Safety classification: Class I type CF
• Protection against defibillation interferencesProtezione contro interferenze da defibrillazione

• Dimensions: 314×145×264 mm
• Weight: 3 kg

Downloads

EU declaration
User manual
Accessories
