Spirometer Mir Spirolab Touchscreen

with PC software Winspiropro and SpO2

Spirometer Mir Spirolab Touchscreen

with PC software Winspiropro and SpO2

General information | Technical information | Standard equipment | Compatible with |
Code:
Brand: MIRlink
Unit:
Availability:
heart_plus

2,871.14 £

(including VAT)
Price without VAT 2,353.39 £
info General information
assignment Technical information
work Standard equipment
list Compatible with

General information

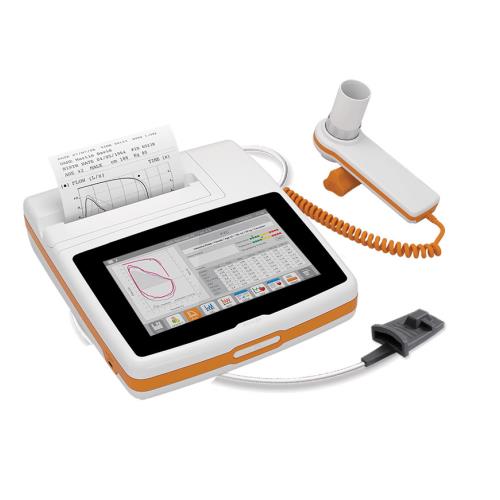

Spirolab® spirometer with 7” touchscreen with printer, software and and SpO2.

Fast, simple, durable diagnostic spirometer with Miniflowmeter. Suitable for children: patented pediatric incentive directly on the screen. No need of adaptor.

Features
- FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters
- long life rechargeable battery
- colour Touchscreen 7“ display
- direct connection to external USB Printer PostScript
- 10,000 Spirometry tests
- wireless Real Time test on PC via Bluetooth®
- fast and silent built-in B/W printer with customizable printout format
- selectable internal software languages: GB, FR, IT, ES, DE, PT

FlowMIR® disposable turbine - complies with ATS/ERS standard
Totally disposable (mouthpiece, turbine) guarantees 100% hygiene, no cross contamination. No calibration required.

Made in Italy.

WinspiroPRO®
High perfomances PC software for spirometry and oximetry with free update.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Compatible with

• Adaptor for paediatric mouthpieces

• Antibacterial and disposable filter for MIR spirometers - 50 pcs

• Disposable adult Mouthpieces for spirometers MIR, Micromedical and Vitalograph - 50 pcs

• Disposable pediatric mouthpieces for spirometers MIR, Micromedical and Vitalograph - 50 pcs

• FlowMir disposable Turbine with cardboard mouthpiece - 60 pcs

• Reusable turbin for Spirometer MIR

Standard equipment

  • Battery charger
  • Software WinspiroPRO®
  • 1 roll thermal paper
  • USB port and cable
  • Reusable turbine
  • Nose clip
  • CD manual: GB, FR, IT, ES, DE, PT
  • Carrying case
  • SpO2 adult sensor



Technical information

Spirometry:
  • Power supply: Rechargeable battery, approx. 10 hours autonomy
  • Temperature sensor: semiconductor (0-45°C)
  • Flow sensor: bi-directional digital turbine
  • Flow range: ±16L/s ±5% or 200mL/s
  • Volume accuracy: ±3% or 50mL
  • Dynamic resistance: <0.5 cm H2O/L/s
  • Connectivity: USB 2.0, Bluetooth® 2.1
  • Display: 7” colour touch screen LCD, 800×480 resolution
  • Mouthpieces: Ø 30 mm (1.18 inch)
  • Electrical protection: Class II
  • Norms: Electrical safety standard EN 60601-1 / Electromagnetic compatibility EN 60601-1-2
  • Dimensions: 220×210×51 mm
  • Weight: 1450 g (battery pack included)
Spirometry parameters:
FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

Technical specifications - Oximetry:
SpO2 range: 0-99%
SpO2 accuracy: ± 2% between 70-99% SpO2
Pulse Rate range: 18-300 BPM
Pulse Rate accuracy: ± 2BPM or 2% whichever is greater
Memory capacity: up to 500 hours oximetry

Oximetry parameters:
%SpO2 and Pulse Rate (Min, Max, Average), Test duration, Total SpO2 Events, T90% (SpO2 time =89%), T89% (SpO2 time =88%), T40 (Bradycardia duration with Pulse Rate <40 BPM), T120 (Tachycardia duration with Pulse Rate >120 BPM)

WINSPIROPRO® REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB
