Viatom 2-in-1 Portable Ultrasound

Wireless with Linear and Convex Probe

Viatom 2-in-1 Portable Ultrasound

Wireless with Linear and Convex Probe

Code:
Brand:
Unit:
Availability:

4,685.32 £

(including VAT)

Price without VAT 3,840.43 £
info General information
assignment Technical information
work Standard equipment
save_alt Downloads

General information

This easy-to-use wireless portable ultrasound allows physicians to manage results and share them with patients at any time. Exams and reports can be saved and printed with just one click.
The high frame rate ensures precise detail and image clarity, enabling quick and accurate diagnoses.

Key Features:
  • Wireless connection, compatible with tablets and smartphones (iOS, Android)
  • Instant image transmission without the need for an external network, thanks to the built-in independent Wi-Fi module
  • Advanced digital technology for enhanced image sharpness
  • Adjustable scanning parameters (depth, gain, power, and color) via a simple and intuitive interface
  • Compact and highly portable — ideal for use in hospitals, emergency rooms, clinics, and field environments
  • Smart terminal platform with powerful application expansion and storage capabilities

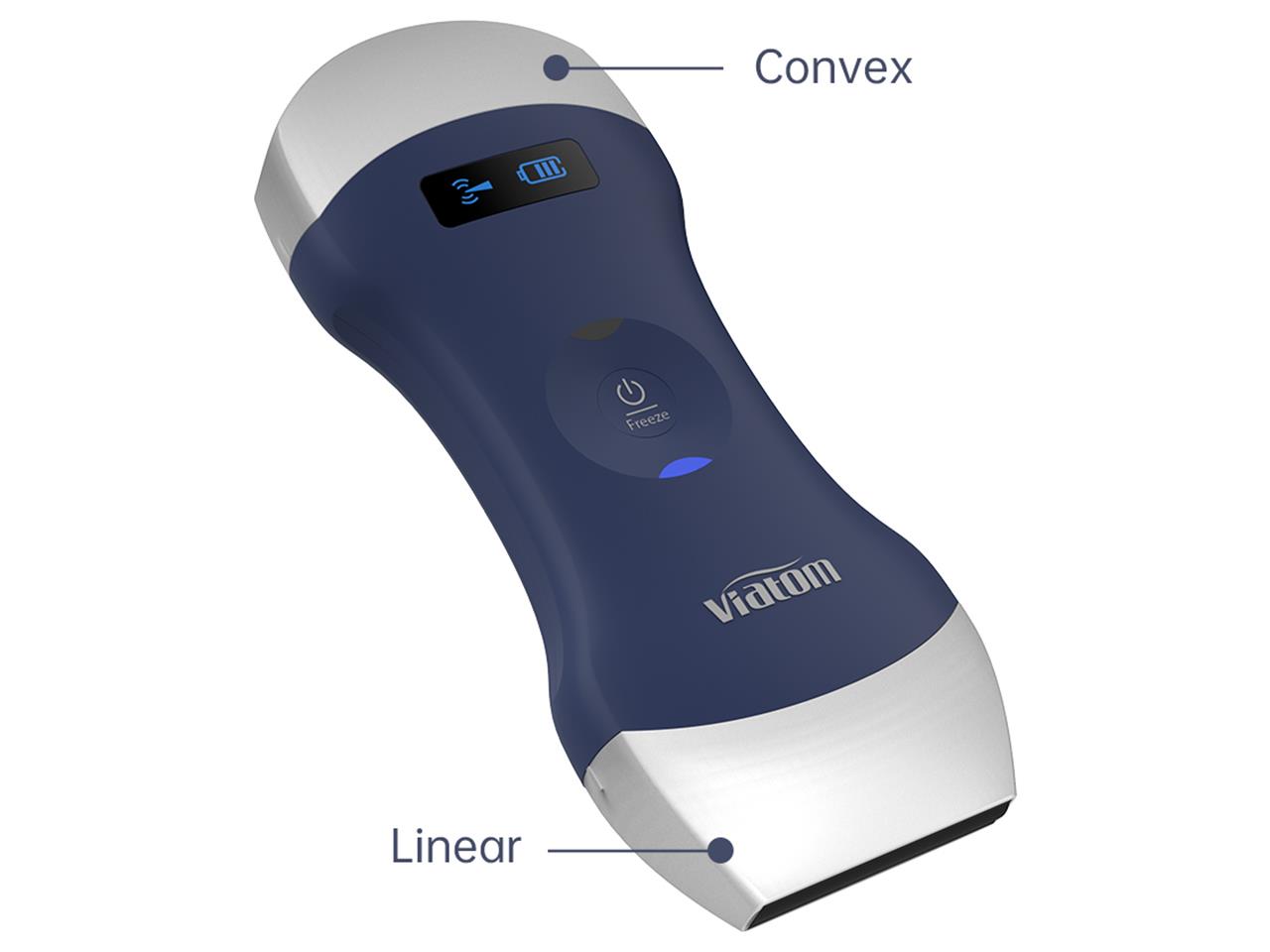

Dual-Head Ultrasound
Two probes in one — easily switch between them by rotating the device.
  • Linear Probe: Suitable for examinations of the breast, thyroid, lymph nodes, carotid arteries, upper and lower limb arteries, small organs, and musculoskeletal system.
  • Convex Probe: Ideal for scanning abdominal and pelvic organs, FAST exams, pleural effusions, and lungs.

Standard equipment

  • Probe Holder
  • Wireless Charging Dock
  • USB Cable



Technical information

Probe Type
Linear:

  • Frequency Range: 7.5–10 MHz
  • Scanning Depth: 20, 40, 60, 100 mm
  • Probe Width: 40 mm

Convex:
  • Frequency Range: 7.5–10 MHz
  • Scanning Depth: 20, 40, 60, 100 mm
  • Probe Width: 40 mm
Imaging
  • Measurements: Length, Area, Angle, Heart Rate, Obstetrics
  • Formats Supported: JPG, AVI, DICOM
  • Frame Rate: 18 frames/sec
  • Image Adjustments: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise

Additional Features
  • Doppler Modes: B, B/BM, B+Color, B+PDI, B+PW
  • Battery Life: 2.5 hours
  • Charging Time: 2 hours
  • Dimensions: 15.6 × 6 × 2 cm
  • Weight: 260 g
