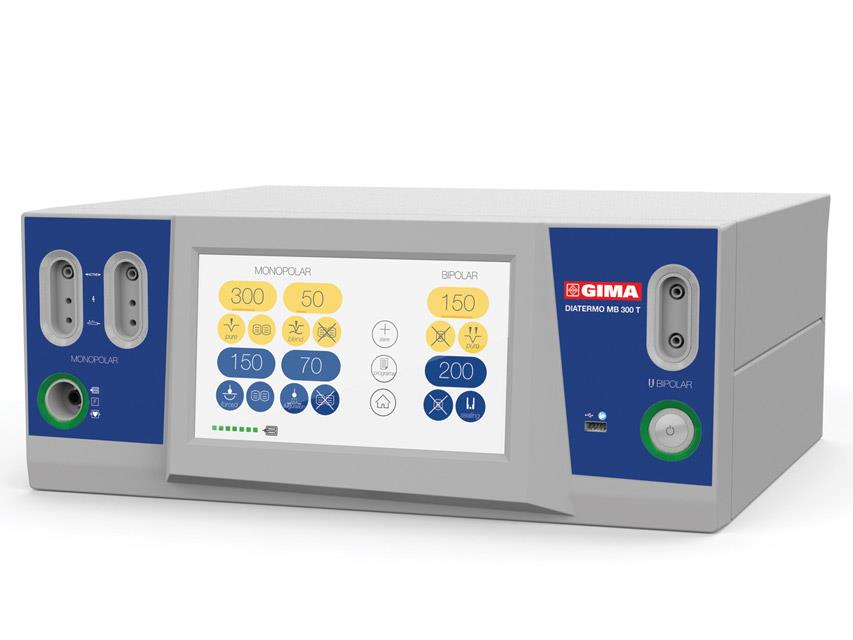

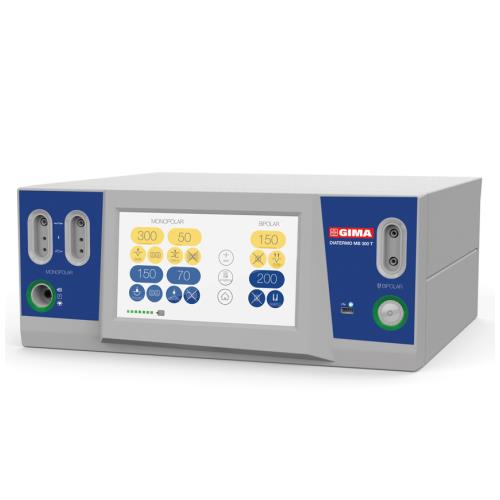

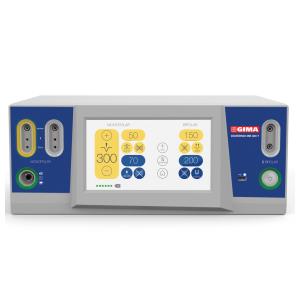

Diatermo mono/bipolar MB 300 Touch

300 Watt

Diatermo mono/bipolar MB 300 Touch

300 Watt

General information | Technical information | Standard equipment | Compatible with |
Code:
Manufacturer code
Brand: GIMAlink
Unit:
Availability:
heart_plus

10,346.72 £

(including VAT)
Price without VAT 8,480.92 £
info General information
assignment Technical information
work Standard equipment
list Compatible with

General information

New generation of electrosurgery, that allows two surgeons to work simultaneously.

A radiofrequency generator suitable for microsurgery and precise surgery in monopolar and bipolar modality.

The simplicity of new Diatermo MB 400 TOUCH allows you to use it without learning time, resulting in time savings.
The initial setup and setting adjustments, during a surgery, can be easily selected through the large touchscreen.

Performance, usability, design and reliability
• simultaneous activation of monopolar and bipolar
• contemporary dual monopolar
• contemporary dual bipolar
• power control depending on impedance
• activating power with pedal and / or handpiece
• neutral-patient electrode contact control
• cutting function under saline solution TUR
• modular cut in wet conditions BLEND
• vessel sealing to clamp vessels up to 7 mm
• possibility of use for minimally invasive surgery
• monopolar / bipolar functions
• auto-start / auto-stop in bipolar modality
• adjusting sound intensity

An intuitive and logic work environment
Diatermo MB 400 TOUCH have a particularly basic and intuitive work environment.
Horizontal matching between monitors, RGB light indications and connectors provide a clear and easy-to-read overview.
The accessory sockets are laterally placed, allowing you to control important information without interference of connectors and attached accessory cables.
The large 9“ capacitive touchscreen, designed with a sleek flat front, ensures faster and more efficient cleaning in the operating room.

State of the art device
Highly professional surgery with ergonomic and safety solutions.
Neutral electrode connection is constantly monitored: if a split neutral plate is used, the device will monitor the contact between the patient and the electrode.
The possibility to switch the functions and set the power supply from the handpiece, allows surgical procedures without divert attention from operation field.

Software
Developed to provide a simple, functional and intuitive work experience.
Through one finger touch, you can choose from a white or black screen, how to customize and to save your work settings, change the cut or coagulation power and manage each device function.

Recommended for:
• Dermatology
• Endoscopy
• Gastroenterology
• General surgery
• Gynecology
• Neurosurgery
• Orthopedics
• Otorhinolaryngology
• Paediatric surgery
• Plastic surgery
• Pneumology
• Urology
• Veterinary

Usable for:
• Orthopedics
• Thorax surgery
• Trans urethral resection (TUR)
• Vascular surgery

Compatible with

• Adson forceps 12.1 cm - 1 mm point

• Autoclavable handle for 106, 108, 50D and 80D

• Ball electrode N° 17 - 7 cm

• Ball electrode N° 36 Ø 4mm - 15 cm - autoclavable

• Bayonet bipolar forceps 18 cm - 1 mm point

• Bayonet monopolar forceps - 20 cm

• Binner forceps - 18 cm - straight

• Bipolar cable for MB 120F, 200F, 200D, 250, 300D, 400D - US plug

• Bipolar cable for MB 122, 160, 200, 202

• Blade electrode N° 36 - 15 cm

• Blade electrode N°16 - 7 cm

• Cable for plates - 5 m

• Cable for rubber plates

• Curved bipolar forceps 18 cm - 1 mm round point

• Cushing forceps 15.9 cm - 1 mm point

• Electrode bend N° 23 - straight 4 mm - 10 cm

• Electrode bend N° 24 - straight 8 mm - 10 cm

• Electrode blade-straight n° 11 - disposable - sterile - 7cm

• Electrode brush - 50×50 mm

• Electrode hook N° 25 - angled 45° - 10 cm

• Electrode N° 10 ball point - straight

• Electrode n° 12 ball point Ø 4 mm - disposable - sterile - 7 cm

• Electrode N° 2 wire - angled 45° - 5 cm

• Electrode N° 21 wire - straight - 10 cm

• Electrode N° 26 wire 1mm - angled 45° - 10 cm

• Electrode N° 28 angled slip - knot - straight - 10 cm

• Electrode N° 29 ball point - angled 45° - 10 cm

• Electrode N° 3 bend - straight Ø 4 mm - 5 cm

• Electrode N° 30 ball point - straight - 10 cm

• Electrode n° 31 blade-straight - disposable - sterile - 15 cm

• Electrode n° 32 ball point Ø 5mm - disposable - sterile - 15 cm

• Electrode N° 5 hook - angled 45°

• Electrode N° 7 straight slip-knot - straight

• Electrode N° 8 angled slip-knot - straight

• Electrode needle n° 13 - disposable - sterile - 7cm

• Electrode needle n° 33 - disposable - sterile - 15 cm

• Electrode wire N° 22 - angled - 10 cm

• Electrodes bend N° 23 - straight 4 mm - 10 cm

• Electrodes bend N° 24 - straight 8 mm - 10 cm

• Electrodes hook N° 25 - angled 45° - 10 cm

• Electrodes N° 1 wire - straight - 5 cm

• Electrodes N° 10 ball point - straight

• Electrodes N° 2 wire - angled 45° - 10 cm

• Electrodes N° 26 wire 1mm - angled 45° - 10 cm

• Electrodes N° 27 straight slip-knot - straight - 10 cm

• Electrodes N° 28 angled slip-knot - straight - 10 cm

• Electrodes N° 29 ball point - angled 45° - 10 cm

• Electrodes N° 30 ball point - straight - 10 cm

• Electrodes N° 4 bend - straight Ø 8 mm - 5 cm

• Electrodes N° 5 hook - angled 45°

• Electrodes N° 6 wire 1 mm - angled 45°

• Electrodes N° 8 angled slip-knot - straight

• Electrodes N° 9 ball point - angled 45°

• Gima single use Mb handle - sterile

• Jansen bayonet bipolar forceps 17.8 cm - 1 mm point

• Loop electrode n° 34 - disposable - sterile - 15 cm

• Loop electrode N° 51 15×8 mm - autoclavable

• Loop electrode N° 52 20×10 mm - autoclavable

• MB AUTOCLAVABLE HANDLE 100 times

• Mc- Pherson forceps 10,2 cm - 0.5 mm point

• METAL PLATE - without cable

• Metzenbaum monopolar scissors - curved - 18 cm

• Metzenbaum monopolar scissors - straight - 18 cm

• Microsurgery handle

• Monopolar scissors - 18 cm

• Needle electrode N° 35 - 15 cm

• Needle electrode N°15 - 7 cm

• New bipolar adaptor for MB 122, 160, 200, 202

• REM rubber plate 20 × 15cm - without cable (for 200,202,240,380)

• Semkin forceps 14 cm - 0.5 mm point

• Set 10 electrodes - 5 cm

• Set of 10 electrodes - 10 cm (From 101058 To 101067)

• Square loop electrode N° 50 10×8 mm - autoclavable

• Star autoclavable handle 30 times

• Straight bipolar forceps 18 cm - 1 mm point

• Straight forceps with irrigation - 18 cm - 1 mm point

• Straight monopolar forceps - 15 cm

Standard equipment

• Flex steel neutral plate with cable
• Power cable 5 m
• Reusable handle with switches
• MB waterproof foot switch
• 3 blade electrodes - 16 cm
• 3 blade electrodes - 7 cm
• 3 ball Ø 4 mm electrodes - 6 cm



Technical information

• Maximum output power PURE CUT: 300 W - 300 Ohm
• Maximum output power BLEND: 200 W - 300 Ohm
• Maximum output power ENHANCED: 200 W - 300 Ohm
• Maximum output power FORCED COAG: 120 W - 150 Ohm
• Maximum output power SOFT COAG: 120 W - 200 Ohm
• Maximum output power BIPOLAR TUR: 250 W - 200 Ohm
• Maximum output power BIPOLAR CUT: 150 W - 100 Ohm
• Maximum output power BIPOLAR COAG: 150 W - 50 Ohm
• Maximum output power BIPOLAR SEALING: 250 W - 50 Ohm
• Maximum output power FULGURATION: 80 W - 500 Ohm
• Working frequency: 360 kHz
• Patient circuit: F
• Selectable input voltage: 100-240 Vac
• Mains frequency: 50-60 Hz
• Electrical input voltage: 1000 VA
• Size WxHxD: 450 × 200 × 420 mm
• Weight: 15.5 kg
• Controls: Patient/Plate circuit monitoring, Output power monitoring, Self check control, HF leakage currents control, Compensation of mains fluctuation
• Safety: EN60601-1, EN60601-1-2, EN60601-2-2, Electrical Class: I CF, MDD 93/42/EC Class: II b
