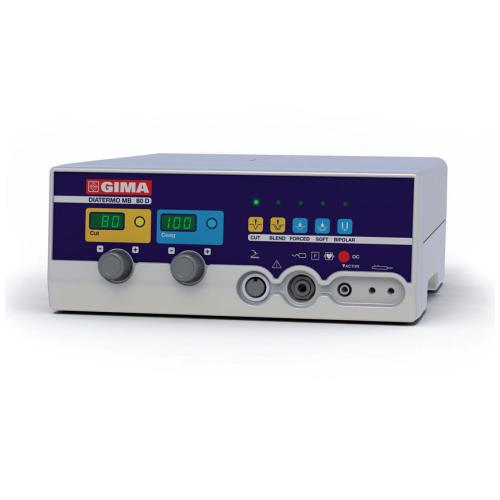

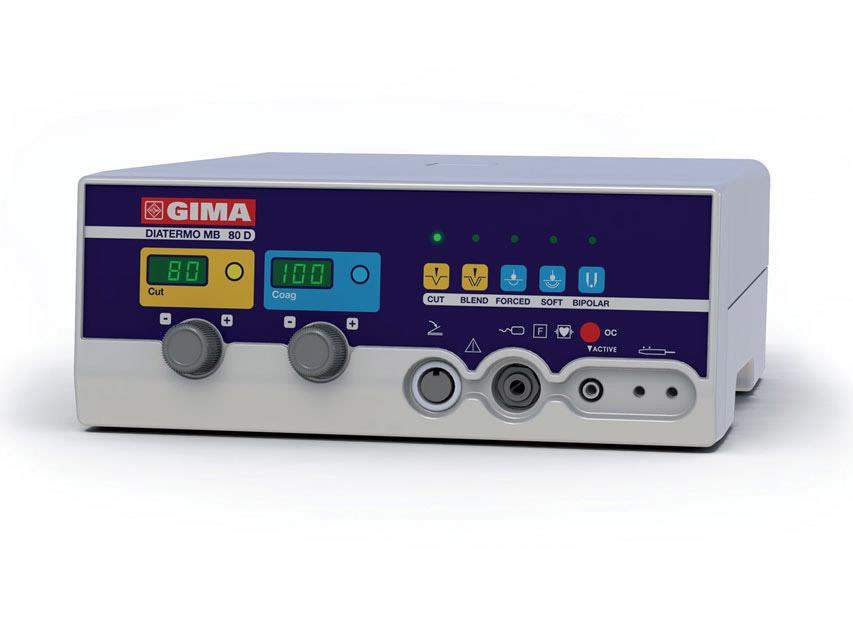

MB 80D mono/bipolar electrosurgical

unit - 80 Watt

MB 80D mono/bipolar electrosurgical

unit - 80 Watt

General information | Technical information | Standard equipment | Compatible with |

Code:	110803
Manufacturer code	30627
Brand:	GIMAlink
Unit:	1 pc.
Availability:

heart_plus

900.43 £

(including VAT)

Price without VAT 738.06 £

info General information

assignment Technical information

work Standard equipment

list Compatible with

General information

Diatermo MB 80D is a high frequency electronic electrosurgical unit suitable for small and medium surgery operations.

The digital reading of the delivered power and the monitoring of the operating functions by means of a microcontroller, help to create the best conditions for the intervention.

Diatermo MB-D allows highly professional surgery thanks to the ergonomic and safety solutions adopted. The electrosurgical unit is equipped with a control system for the correct functioning of the neutral electrode.

Ability to switch functions and control the power supply from the electrode holder handpiece, allowing the execution of surgical interventions without distracting attention from the operating field.

Features:

• minimally invasive surgery

• possibility of using bipolar forceps

• possibility of using bipartite neutral electrodes

• memorization of the last used settings

• activation of the power with pedal and / or handpiece

• digital regulation and indication of power

• regulation of the intensity of the sound emission

Recommended applications:

• outpatient surgery

• dermatology

• dentistry

• emergency room

Usable in:

• vascular surgery

• veterinary

Functions:

• pure cut CUT

• cut-coagulated BLEND

• FORCED COAG surface coagulation

• deep coagulation in the absence of SOFT COAG carbonization

• BIPOLAR bipolar coagulation (using forceps)

Compatible with

• Adson forceps 12.1 cm - 1 mm point

• Ball electrode N° 17 - 7 cm

• Ball electrode N° 36 Ø 4mm - 15 cm - autoclavable

• Bayonet bipolar forceps 18 cm - 1 mm point

• Bayonet monopolar forceps - 20 cm

• Binner forceps - 18 cm - straight

• Bipolar cable for MB 120F, 200F, 200D, 250, 300D, 400D - US plug

• Blade electrode N° 36 - 15 cm

• Blade electrode N°16 - 7 cm

• Cable for plates - 5 m

• Cable for rubber plates

• Curved bipolar forceps 18 cm - 1 mm round point

• Cushing forceps 15.9 cm - 1 mm point

• Electrode bend N° 23 - straight 4 mm - 10 cm

• Electrode bend N° 24 - straight 8 mm - 10 cm

• Electrode blade-straight n° 11 - disposable - sterile - 7cm

• Electrode brush - 50×50 mm

• Electrode hook N° 25 - angled 45° - 10 cm

• Electrode N° 10 ball point - straight

• Electrode n° 12 ball point Ø 4 mm - disposable - sterile - 7 cm

• Electrode N° 2 wire - angled 45° - 5 cm

• Electrode N° 21 wire - straight - 10 cm

• Electrode N° 26 wire 1mm - angled 45° - 10 cm

• Electrode N° 28 angled slip - knot - straight - 10 cm

• Electrode N° 29 ball point - angled 45° - 10 cm

• Electrode N° 3 bend - straight Ø 4 mm - 5 cm

• Electrode N° 30 ball point - straight - 10 cm

• Electrode n° 31 blade-straight - disposable - sterile - 15 cm

• Electrode n° 32 ball point Ø 5mm - disposable - sterile - 15 cm

• Electrode N° 5 hook - angled 45°

• Electrode N° 7 straight slip-knot - straight

• Electrode N° 8 angled slip-knot - straight

• Electrode needle n° 13 - disposable - sterile - 7cm

• Electrode needle n° 33 - disposable - sterile - 15 cm

• Electrode wire N° 22 - angled - 10 cm

• Electrodes bend N° 23 - straight 4 mm - 10 cm

• Electrodes bend N° 24 - straight 8 mm - 10 cm

• Electrodes hook N° 25 - angled 45° - 10 cm

• Electrodes N° 1 wire - straight - 5 cm

• Electrodes N° 10 ball point - straight

• Electrodes N° 2 wire - angled 45° - 10 cm

• Electrodes N° 26 wire 1mm - angled 45° - 10 cm

• Electrodes N° 27 straight slip-knot - straight - 10 cm

• Electrodes N° 28 angled slip-knot - straight - 10 cm

• Electrodes N° 29 ball point - angled 45° - 10 cm

• Electrodes N° 30 ball point - straight - 10 cm

• Electrodes N° 4 bend - straight Ø 8 mm - 5 cm

• Electrodes N° 5 hook - angled 45°

• Electrodes N° 6 wire 1 mm - angled 45°

• Electrodes N° 8 angled slip-knot - straight

• Electrodes N° 9 ball point - angled 45°

• EU bipolar cable for MB120D and MB160D

• Gima single use Mb handle - sterile

• Jansen bayonet bipolar forceps 17.8 cm - 1 mm point

• Loop electrode n° 34 - disposable - sterile - 15 cm

• Loop electrode N° 51 15×8 mm - autoclavable

• Loop electrode N° 52 20×10 mm - autoclavable

• MB AUTOCLAVABLE HANDLE 100 times

• Mc- Pherson forceps 10,2 cm - 0.5 mm point

• METAL PLATE - without cable

• Metzenbaum monopolar scissors - curved - 18 cm

• Metzenbaum monopolar scissors - straight - 18 cm

• Microsurgery handle

• Monopolar scissors - 18 cm

• Needle electrode N° 35 - 15 cm

• Needle electrode N°15 - 7 cm

• REM rubber plate 20 × 15cm - without cable (for 200,202,240,380)

• Semkin forceps 14 cm - 0.5 mm point

• Set 10 electrodes - 5 cm

• Set of 10 electrodes - 10 cm (From 101058 To 101067)

• Square loop electrode N° 50 10×8 mm - autoclavable

• Star autoclavable handle 30 times

• Straight bipolar forceps 18 cm - 1 mm point

• Straight forceps with irrigation - 18 cm - 1 mm point

• Straight monopolar forceps - 15 cm

• Waterproof footswitch for electrosurgical units 50, 80, MB120, 122, 132, 160, 200, 202 – 2 m

Standard equipment

• 1 disposable handpiece with buttons

• 1 kit of 10 assorted electrodes, length 5 cm

• 1 connection cable for neutral electrode

• 1 neutral electrode in steel 120 × 160 mm

• 1 single waterproof pedal

• 1 power cable 2 mt, 3×1 mm

The bipolar cable and the clamps are excluded from the standard equipment of the device because, given the great variety of clamps available and their high cost, we have preferred to leave the user free to choose the one he likes best. Pliers and cables, made in Germany, can be sterilized in an autoclave, are suitable for most electrosurgical units on the market.

Technical information

• Maximum power cut CUT: 80 W - 250 Ω

• Maximum power cut-coagulated BLEND: 60 W - 250 Ω

• Maximum coagulation power FORCED COAG: 50 W - 150 Ω

• SOFT COAG maximum coagulation power: 40 W - 100 Ω

• Maximum bipolar power BIPOLAR: 30 W - 100 Ω

• Working frequency: 600 kHz

• Neutral electrode: F

• Selectable power supply: 115 –230 Vac

• Mains frequency: 50-60 Hz

• Maximum absorbed power: 230 VA

• Weight: 5 Kg

• Unit dimensions WxHxD: 254 × 104 × 288 mm

• Checks: Plaque / patient circuit check, power emitted check, self-diagnosis

• Safety: EN60601-1, EN60601-1-2, EN60601-2-2,

• Electrical classification: I CF; MDD 93/42 / EC Class: II b
