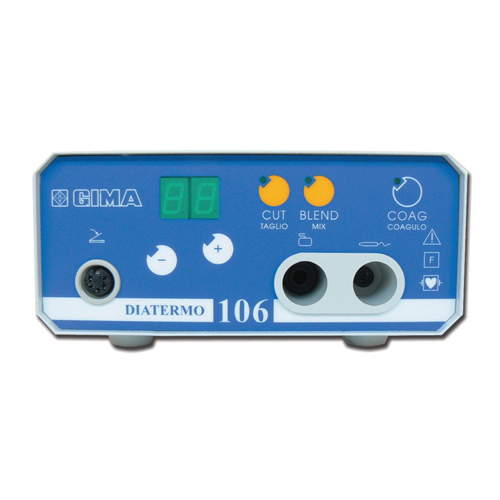

Diatermo 106 monopolar

50 Watt

Diatermo 106 monopolar

50 Watt

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Manufacturer code
Brand: GIMAlink
Unit:
Availability:
heart_plus

559.37 £

(including VAT)
Price without VAT 458.50 £
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

The HF electrosurgery unit, ais particularly suitable for small operations and is recommended for veterinary gynaecology and dermatology work.

It offers precision of cut and immediate coagulation and gives excellent results in a large range of applications: from uterine coagulation to microcoagulation in dermatology. Moreover you can choose from a wide variety of electrodes for any need. The three modes of operation, CUT, COAG and BLEND, can be easily selected through a switch on the front panel.

The complete isolation between the patient and the unit and the strict respect of international norms guarantee total safety.

Compatible with

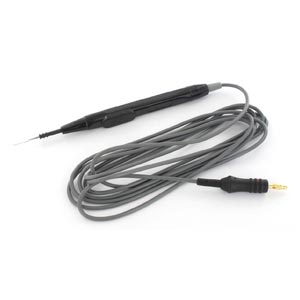

• Autoclavable handle for 106, 108, 50D and 80D

• Ball electrode N° 17 - 7 cm

• Ball electrode N° 36 Ø 4mm - 15 cm - autoclavable

• Bayonet monopolar forceps - 20 cm

• Blade electrode N° 36 - 15 cm

• Blade electrode N°16 - 7 cm

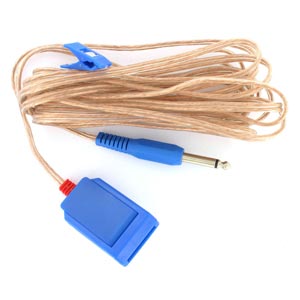

• Cable for plates - 5 m

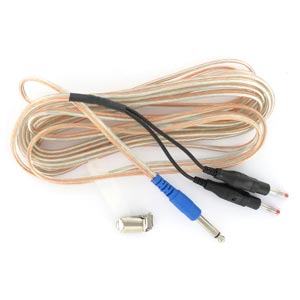

• Cable for rubber plates

• Electrode bend N° 23 - straight 4 mm - 10 cm

• Electrode blade-straight n° 11 - disposable - sterile - 7cm

• Electrode brush - 50×50 mm

• Electrode hook N° 25 - angled 45° - 10 cm

• Electrode N° 10 ball point - straight

• Electrode n° 12 ball point Ø 4 mm - disposable - sterile - 7 cm

• Electrode N° 2 wire - angled 45° - 5 cm

• Electrode N° 21 wire - straight - 10 cm

• Electrode N° 26 wire 1mm - angled 45° - 10 cm

• Electrode N° 28 angled slip - knot - straight - 10 cm

• Electrode N° 29 ball point - angled 45° - 10 cm

• Electrode N° 3 bend - straight Ø 4 mm - 5 cm

• Electrode N° 30 ball point - straight - 10 cm

• Electrode n° 31 blade-straight - disposable - sterile - 15 cm

• Electrode n° 32 ball point Ø 5mm - disposable - sterile - 15 cm

• Electrode N° 5 hook - angled 45°

• Electrode N° 7 straight slip-knot - straight

• Electrode N° 8 angled slip-knot - straight

• Electrode needle n° 13 - disposable - sterile - 7cm

• Electrode needle n° 33 - disposable - sterile - 15 cm

• Electrode wire N° 22 - angled - 10 cm

• Loop electrode n° 34 - disposable - sterile - 15 cm

• Loop electrode N° 51 15×8 mm - autoclavable

• Loop electrode N° 52 20×10 mm - autoclavable

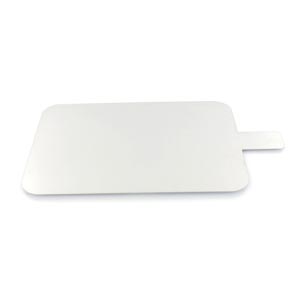

• METAL PLATE - without cable

• Metzenbaum monopolar scissors - curved - 18 cm

• Metzenbaum monopolar scissors - straight - 18 cm

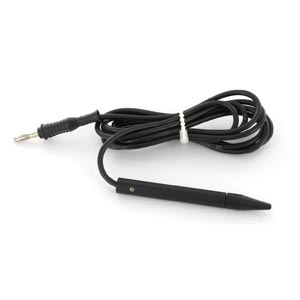

• Microsurgery handle

• Monopolar scissors - 18 cm

• Needle electrode N° 35 - 15 cm

• Needle electrode N°15 - 7 cm

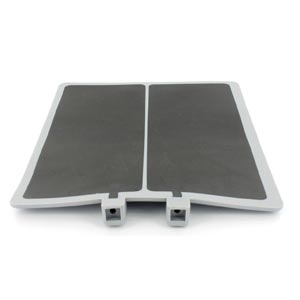

• REM rubber plate 20 × 15cm - without cable (for 200,202,240,380)

• Single use handle for MB 50, 80, 106, 108

• Square loop electrode N° 50 10×8 mm - autoclavable

• Straight monopolar forceps - 15 cm

• Waterproof footswitch for electrosurgical units 50, 80, MB120, 122, 132, 160, 200, 202 – 2 m

Standard equipment

• KIRKY single-use handle without buttons
• Operative foot-switch
• Flat neutral plate with cable (101087)
• Kit of 6 short autoclavable electrodes, Ø 2.4 mm, lenght 5 cm
• Power cable 2 m - Shuko plug
• User manual: available in English, Italian, Spanish, French



Technical information

Output power:
• CUT 50W/400 ohm
• COAG 40W/400 ohm
• BLEND 45W/400 ohm

• Working frequency: 600 KHz +/- 10%
• Size: 180 × 180 × h 100 mm
• Weight: 2.8 kg
• Operating Voltage: 115/230 V - 50/60 Hz switchable
• Electric input power: 90 VA
• Fuse: 2 × 1 AT
• Alarm for overheating
• Footswitch operating
• Norms: EN60601-1Class I CF, EN 60601-1-2 93/42/EEC (Class IIb)
• Warranty: 12 months

Downloads

ISO certificates
User manual
Declaration of conformity
CE certificates
