Supervega 118 battery aspirator 36 lit/min

230V

230V

General information | Technical information | Standard equipment | Downloads |

(including VAT)

Price without VAT 383.17 £

Add to cart

info General information

assignment Technical information

work Standard equipment

save_alt Downloads

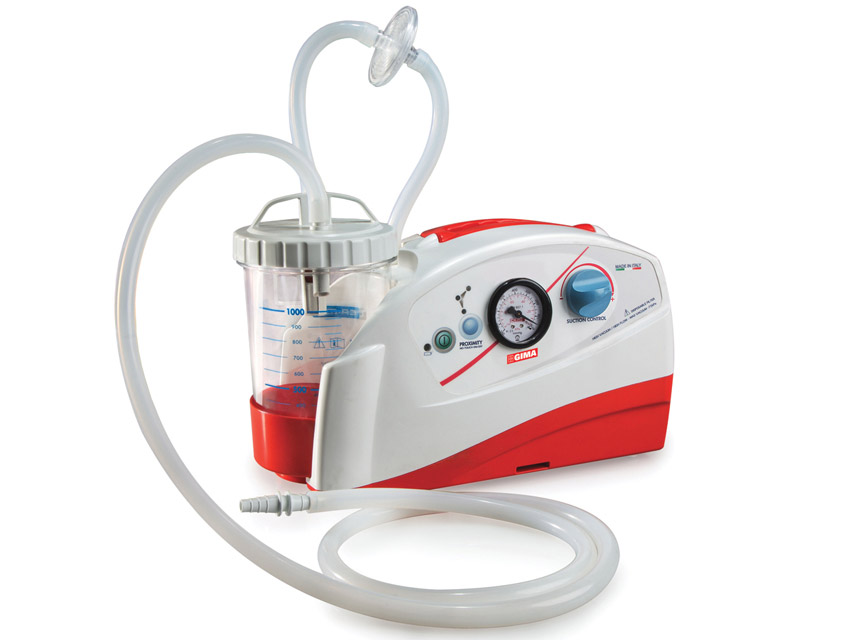

Supervega 118 is an electric medical and portable device for nasal, oral and tracheal aspiration of body fluids in children or adults.

Two or three options of operation: by 100-240 V power feeding (only 107338 and 110246), 12 V car adapter or internal rechargeable battery.

Equipped with a long-life brushless motor eliminating any type of smell and coal residuals.

PROXIMITY function: NO-TOUCH ON/OFF

This function prevents and avoids cross-contamination inbetween patients.

Various options of jar

Standard autoclavable (121°C) Makrolon® polycarbonate, optional FLOVAC® disposable liners or autoclavable (143°C) APEC® polycarbonate.

In compliance with EN 60601-1-11 for use in the home healthcare environment and carries IP22 degree protection.

• Polycarbonate jar 1,000 ml with overflow valve system

• Antibacterial filter

• Suction catheter

• Silicone tube set with conical connector

• Universal power adaptor (100-240V - 50/60 Hz)

• 12V car adapter

• User Manual GB, FR, IT, DE, ES

Power:

• Internal rechargeable Lithium battery (14.8 V - 5.2 A) - Autonomy 70 min

• Car-ambulance adapter (12 V - 4 A)

• AC/DC adapter 110-240 V, 50-60 Hz

• Motor: Oil-less and maintenance-free piston pump

• Max vacuum (adjustable): -0.75 Bar; -75 kPa; -563 mmHg

• Max free air flow rate:36 l/m

• Size: 35×19×15 cm Weight: 2.7 kg

• Duty cycle: non stop operation (by mains or 12 V only)

• Noise level min/max: 54.7/68.2 dBA

EU declaration

User manual
