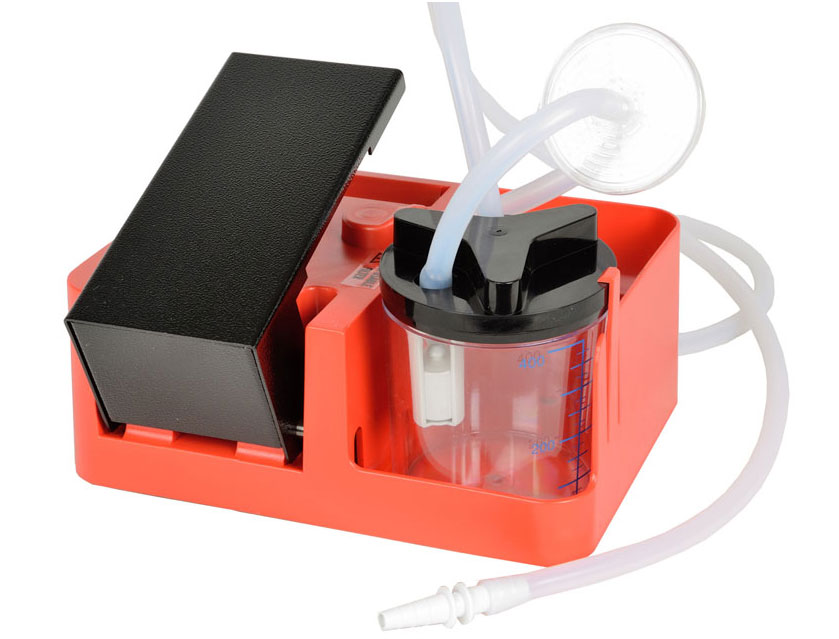

Tobi is a portable foot-operated suction unit suitable for emergency aspiration.
Independent of any power source, it is used to clear patient’s airways safely and efficiently, anytime, anywhere.
Tobi is a manual device to be used for the emergency field for aspiration of the body liquids (mucus or catarrh). Precision and solidly built to assure long service life.
Easily movable and designed for a manual use. Thanks to this characteristics and to the rating that it has product is particularly suitable for an emergency use, on the thacheotomized patients, minor surgical applications and post-operative therapy at home.
Made of highly heat resistant, in conformity with the latest European safety standard, the product is supplied with a polycarbonate 400 ml autoclavable jar with overflow valve sysstem.
• 400 ml jar
• Antibacterial and hydrophobic filter
• Complete set of silicone tubes 6 × 10 mm
• Conical connector for cannula
• Maximum suction aspiration: -0.40 Bar / -40kPa / -300mmHg
• Max free air flow rate: 22 l/min
• Functioning Foot Operated
• Weigth 1.150 Kg
• Dimensions 225 × 165 (h) x 85 mm
• Made in Italy
Reference to Standards
• Safety requirements for Manually powered suction equipment UNI EN ISO 10079-2
• Class IIa Medical Device according to 93/42/EEC "Medical Device" Directive
