Product Description

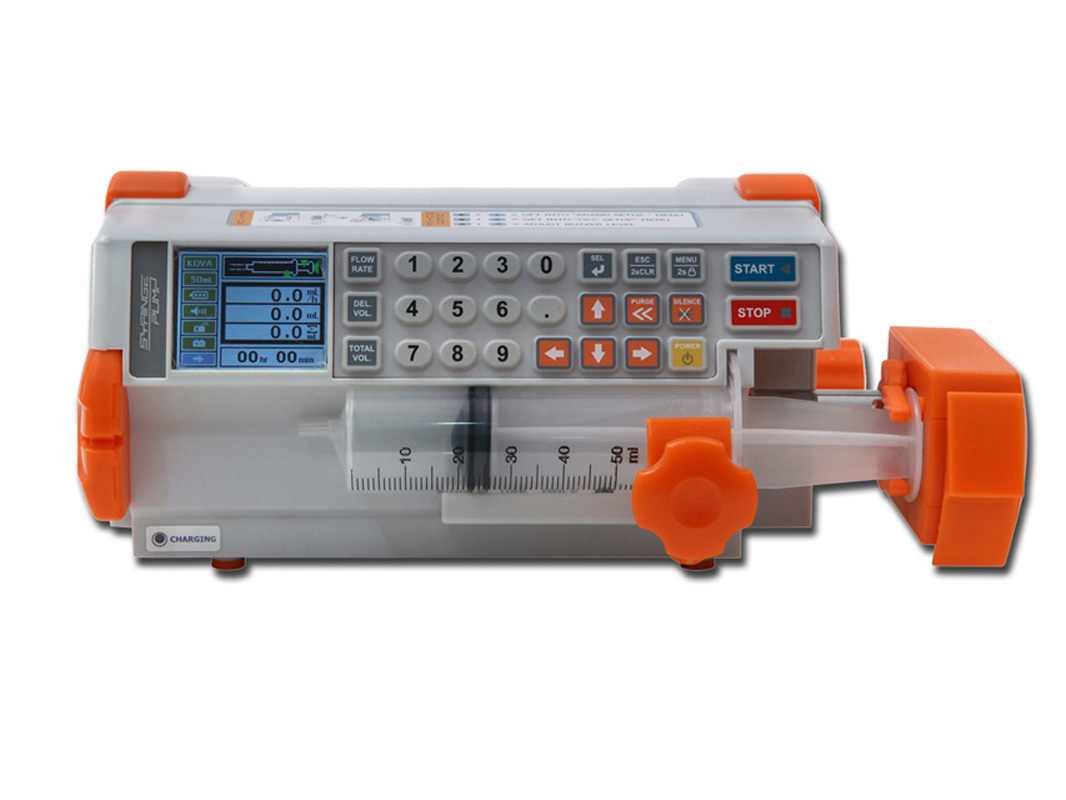

SP-8800 provides easy syringe installing through one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad. Color LCD displays infusion information dramatically shortcut key manages easy approach for frequent functions. K.V.O. rate, purge rate, bolus and anti bolus can be setup as operating application. Supplied with battery. Flexible flow volume setting. Full program dosage feature: it automatically calculates flow rate by patient's weight, injection's mass and melting. Keep Vein Open (K. V. O.) feature: When reached to the preset value, it converts to low flow speed of 0.1ml/h automatically to prevent flow route clog due to blood coagulation. Compatibility with 5 major brands of syringes: Syringe brand setting feature enables you 5 choose, from following syringe brands: BD, TERUMO, ARTSANA, PENTAFERTE, SUNGSHIM. Alarm and notification feature: It notifies errors and emergencies with LED light and buzzer. Simultaneous visual and audio alarm. Occlusion error range setting: You can set the pressure level of occlusion stage to High, Medium and Low by patient's age condition.
Product Description
SP-8800 provides easy syringe installing through one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad. Color LCD displays infusion information dramatically shortcut key manages easy approach for frequent functions. K.V.O. rate, purge rate, bolus and anti bolus can be setup as operating application. Supplied with battery. Flexible flow volume setting. Full program dosage feature: it automatically calculates flow rate by patient's weight, injection's mass and melting. Keep Vein Open (K. V. O.) feature: When reached to the preset value, it converts to low flow speed of 0.1ml/h automatically to prevent flow route clog due to blood coagulation. Compatibility with 5 major brands of syringes: Syringe brand setting feature enables you 5 choose, from following syringe brands: BD, TERUMO, ARTSANA, PENTAFERTE, SUNGSHIM. Alarm and notification feature: It notifies errors and emergencies with LED light and buzzer. Simultaneous visual and audio alarm. Occlusion error range setting: You can set the pressure level of occlusion stage to High, Medium and Low by patient's age condition.
Technical information
Flow volume setting range Syringe 10ml : 0.1-300ml/h Syringe 20ml : 0.1-400ml/h Syringe 30ml : 0.1-500ml/h Syringe 50ml : 0.1-1200ml/h Flow volume error margin ±3% Infusion limit volume range 0.1~999.9ml (0.1 ml infusion interval) Total estimated volume range 0.1~999.9ml (0.1ml infusion interval) K.V.O rate (Vein maintaing function) 1 ~ 10 ml/h adjustable Size (W xDx H) 220×130×108 mm Weight 2 kg Rapid flow volume (Purge) 0.1 ~ 1200 ml/h adjustable Bolus 0.1 ~ 1200 ml/h, 0.1 ~ 1000 ml adjustable Nurse call DC12V, 1A Alarm features Occlusion, K.V.O. (infusion completion), standby, near empty, low battery, device malfunction (CPU error), clamp/handle lever/slider disengaged, syringe disengaged. Special features Keypad lock, shortcut key, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, anti bolus, occ. level. history call-back. Power AC 110V / 220V, 50/60Hz and DC9.6V inner source adapter DC24V / 1A Maximum power consumption 18VA Electric protection levels Class II B, inner source device, CF type Waterproof level IPX2 Battery type Ni-MH Battery using time 5 hours at (5ml/h). Battery charging time Minimum 6 hrs. Battery life about 6 months.
Flow volume setting range Syringe 10ml : 0.1-300ml/h Syringe 20ml : 0.1-400ml/h Syringe 30ml : 0.1-500ml/h Syringe 50ml : 0.1-1200ml/h Flow volume error margin ±3% Infusion limit volume range 0.1~999.9ml (0.1 ml infusion interval) Total estimated volume range 0.1~999.9ml (0.1ml infusion interval) K.V.O rate (Vein maintaing function) 1 ~ 10 ml/h adjustable Size (W xDx H) 220×130×108 mm Weight 2 kg Rapid flow volume (Purge) 0.1 ~ 1200 ml/h adjustable Bolus 0.1 ~ 1200 ml/h, 0.1 ~ 1000 ml adjustable Nurse call DC12V, 1A Alarm features Occlusion, K.V.O. (infusion completion), standby, near empty, low battery, device malfunction (CPU error), clamp/handle lever/slider disengaged, syringe disengaged. Special features Keypad lock, shortcut key, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, anti bolus, occ. level. history call-back. Power AC 110V / 220V, 50/60Hz and DC9.6V inner source adapter DC24V / 1A Maximum power consumption 18VA Electric protection levels Class II B, inner source device, CF type Waterproof level IPX2 Battery type Ni-MH Battery using time 5 hours at (5ml/h). Battery charging time Minimum 6 hrs. Battery life about 6 months.
