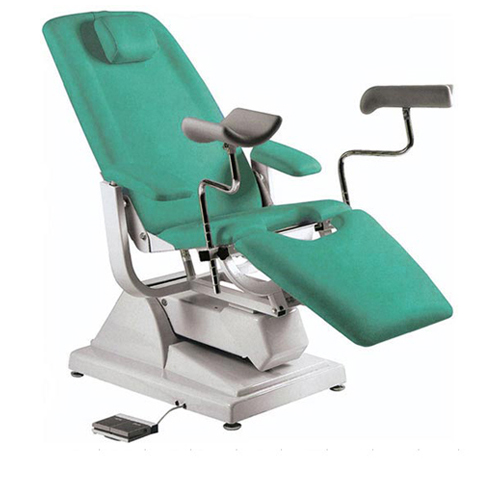

A chair offering a unique combination of functional, aesthetic and working characteristic. Thanks to its self-balancing seat and backrest, GYNEX can be adjusted to any build for the greatest patient comfort.
The
chair is provided with an electromechanical lifting device, having a
secondary power supply at 24V. The electric actuators enable the rising
and descent from 57 cm off the floor (“0” position) up to a maximum of
96 cm. The back-rest is supplied with adjustable head-rest and paper
roll holder (excluding 27520). The leg-rest can be indipendently
adjusted and it has an automatic-locking device.
Thanks to
the combined movement of back and sit, with an automatic balance
mechanism assisted by a gas spring, is adjustable to every kind of body,
giving to the patient the maximum comfort.
The upholstered
armrests protect the patient in total relax, and are adjustable and
removable. The back is supplied with adjustable in height and removable
headrest. The big and soft legrest is adjustable in autonomy from all
the other movements, with an automatic block mechanism.
The armchair is powered by a silent, low tension electric actuator, which allows and height move of 40 cm.
Commands are detected from pedal connected by cable.
GYNEX - created as gynecologycal armchair - can be easyly transformed into a classic medical bed.
A chair offering a unique combination of functional, aesthetic and working characteristic. Thanks to its self-balancing seat and backrest, GYNEX can be adjusted to any build for the greatest patient comfort.
The
chair is provided with an electromechanical lifting device, having a
secondary power supply at 24V. The electric actuators enable the rising
and descent from 57 cm off the floor (“0” position) up to a maximum of
96 cm. The back-rest is supplied with adjustable head-rest and paper
roll holder (excluding 27520). The leg-rest can be indipendently
adjusted and it has an automatic-locking device.
Thanks to
the combined movement of back and sit, with an automatic balance
mechanism assisted by a gas spring, is adjustable to every kind of body,
giving to the patient the maximum comfort.
The upholstered
armrests protect the patient in total relax, and are adjustable and
removable. The back is supplied with adjustable in height and removable
headrest. The big and soft legrest is adjustable in autonomy from all
the other movements, with an automatic block mechanism.
The armchair is powered by a silent, low tension electric actuator, which allows and height move of 40 cm.
Commands are detected from pedal connected by cable.
GYNEX - created as gynecologycal armchair - can be easyly transformed into a classic medical bed.
• Power supply tension: 230-50 Hz • Motor tension: 24 V • Lifting motor push: 4,000 N • Backrest motor push: 800 N • Lifting capacity: 180 kg • Maxium power: 90 VA • Fuser protection: 1.6 A • Made in Italy • Colour: green Melbourne
