Gynex chair with paper roll holder

Metal Apricot

Gynex chair with paper roll holder

Metal Apricot

General information | Technical information | Standard equipment | Compatible with | Downloads |
Code:
Brand: EUROCLINIClink
Unit:
Availability:
heart_plus

3,903.96 £

(including VAT)
Price without VAT 3,199.97 £
Colour
blue Bern
light blue Palm Beach
purple Nice
red Moscow
green Melbourne
green New Delhi
yellow Parma
beige Rome
metal sea blue
orange Amsterdam
blue Chicago
green Vancouver
light blue Paris
info General information
assignment Technical information
work Standard equipment
list Compatible with
save_alt Downloads

General information

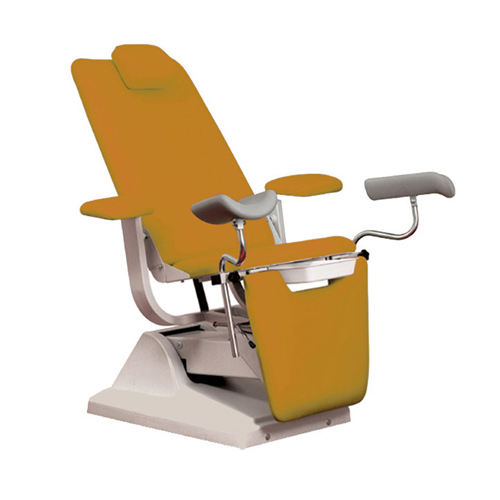

A chair offering a unique combination of functional, aesthetic and working characteristic.
Thanks to its self-balancing seat and backrest, GYNEX can be adjusted to any build for the greatest patient comfort.

The chair is provided with an electromechanical lifting device, having a secondary power supply at 24V. The electric actuators enable the rising and descent from 57 cm off the floor (“0” position) up to a maximum of 96 cm. The back-rest is supplied with adjustable head-rest and paper roll holder (excluding 27520). The leg-rest can be indipendently adjusted and it has an automatic-locking device.

Thanks to the combined movement of back and sit, with an automatic balance mechanism assisted by a gas spring, is adjustable to every kind of body, giving to the patient the maximum comfort.
The upholstered armrests protect the patient in total relax, and are adjustable and removable. The back is supplied with adjustable in height and removable headrest. The big and soft legrest is adjustable in autonomy from all the other movements, with an automatic block mechanism.
The armchair is powered by a silent, low tension electric actuator, which allows and height move of 40 cm.
Commands are detected from pedal connected by cable.
GYNEX - created as gynecologycal armchair - can be easyly transformed into a classic medical bed.

Compatible with

• GYNEX STOOL - Green Vancouver

• Gynex stool without ring - Amsterdam orange

Standard equipment

• Poliuretane leg-rest
• Paper-roll holder



Technical information

• Power supply tension: 230-50 Hz
• Motor tension: 24 V
• Lifting motor push: 4,000 N
• Backrest motor push: 800 N
• Lifting capacity: 180 kg
• Maxium power: 90 VA
• Fuser protection: 1.6 A
• Made in Italy
• Colour: metal apricot

Downloads

User manual
