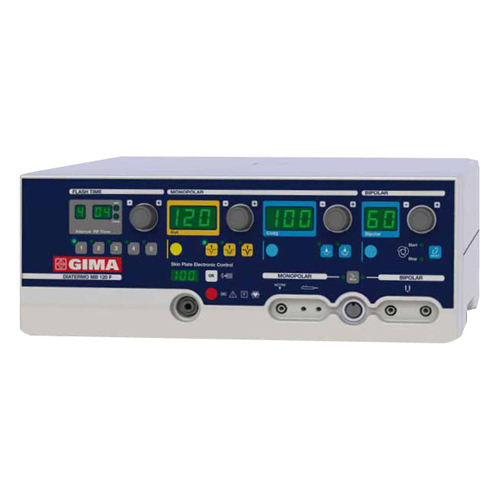

Electrosurgical Unit MB 120 FLASH

Monopolar/Bipolar – 120 Watts

Electrosurgical Unit MB 120 FLASH

Monopolar/Bipolar – 120 Watts

General information | Technical information | Standard equipment | | Downloads |
Code:
Brand: GIMAlink
Unit:
Availability:
heart_plus

1,809.03 £

()
1,482.81 £
info General information
assignment Technical information
work Standard equipment
list
save_alt Downloads

General information

High-Frequency Electrosurgical Unit MB 120 FLASH allows for surgical procedures with programmable operating times in millisecond, or it can be used in traditional mode as well.
Its digital screen displays delivered power and microcontroller-based monitoring of operating functions, ensuring absolute reliability during surgeries.

In bipolar coagulation mode, the system can detect tissue impedance, automatically activating and deactivating the output once coagulation is complete (AUTOSTART – AUTOSTOP).

It enables highly professional surgical procedures thanks to its ergonomic and safety-oriented design. The neutral electrode connection is continuously monitored, and when a split neutral electrode is used, the contact between the neutral electrode and the patient is also checked. The ability to switch functions and control power output directly from the electrode handpiece allows surgical procedures to be performed without diverting attention from the operative field.

Recommended Applications:
  • Vascular surgery
  • Dermatology
  • Emergency care
Usable in:
  • Outpatient surgery
  • Endoscopy
  • Gastroenterology
  • Gynecology
  • Dentistry
  • Ophthalmology
  • EENT
  • Veterinary medicine
Functions:
  • Pure cut (CUT)
  • Blended cut/coagulation (BLEND)
  • Superficial coagulation (COAG FORCED)
  • Deep coagulation without carbonization (COAG SOFT)
  • Bipolar coagulation (BIPOLAR)
Controls:
  • Plate/patient circuit monitoring (OC)
  • Power output control
  • Self-diagnostics
Safety:
  • EN60601-1
  • EN60601-1-2
  • EN60601-2-2
  • Electrical Classification: I CF
  • EU Directive 93/42/EEC Class: IIb

• Adson forceps 12.1 cm - 1 mm point

• Autoclavable handle for 106, 108, 50D and 80D

• Ball electrode N° 17 - 7 cm

• Ball electrode N° 36 Ø 4mm - 15 cm - autoclavable

• Bayonet bipolar forceps 18 cm - 1 mm point

• Bayonet monopolar forceps - 20 cm

• Binner forceps - 18 cm - straight

• Bipolar cable for MB 120F, 200F, 200D, 250, 300D, 400D - EU connector

• Bipolar cable for MB 120F, 200F, 200D, 250, 300D, 400D - US plug

• Blade electrode N° 36 - 15 cm

• Blade electrodes N°16 - 7 cm

• Cable for plates - 5 m

• Cable for rubber plates

• Curved bipolar forceps 18 cm - 1 mm round point

• Cushing forceps 15.9 cm - 1 mm point

• Diatermo cart - medium

• Electrode blade-straight n° 11 - disposable - sterile - 7cm

• Electrode brush - 50×50 mm

• Electrode hook N° 25 - angled 45° - 10 cm

• Electrode N° 10 ball point - straight

• Electrode n° 12 ball point Ø 4 mm - disposable - sterile - 7 cm

• Electrode N° 21 wire - straight - 10 cm

• Electrode N° 26 wire 1mm - angled 45° - 10 cm

• Electrode N° 28 angled slip - knot - straight - 10 cm

• Electrode N° 29 ball point - angled 45° - 10 cm

• Electrode n° 31 blade-straight - disposable - sterile - 15 cm

• Electrode n° 32 ball point Ø 5mm - disposable - sterile - 15 cm

• Electrode N° 7 straight slip-knot - straight

• Electrode N° 8 angled slip-knot - straight

• Electrode needle n° 13 - disposable - sterile - 7cm

• Electrode needle n° 33 - disposable - sterile - 15 cm

• Electrode wire N° 22 - angled - 10 cm

• Electrodes bend N° 23 - straight 4 mm - 10 cm

• Electrodes bend N° 24 - straight 8 mm - 10 cm

• Electrodes hook N° 25 - angled 45° - 10 cm

• Electrodes N° 1 wire - straight - 5 cm

• Electrodes N° 10 ball point - straight

• Electrodes N° 2 wire - angled 45° - 10 cm

• Electrodes N° 2 wire - angled 45° - 5 cm

• Electrodes N° 21 wire - straight - 10 cm

• Electrodes N° 26 wire 1mm - angled 45° - 10 cm

• Electrodes N° 27 straight slip-knot - straight - 10 cm

• Electrodes N° 28 angled slip-knot - straight - 10 cm

• Electrodes N° 29 ball point - angled 45° - 10 cm

• Electrodes N° 3 bend - straight Ø 4 mm - 5 cm

• Electrodes N° 30 ball point - straight - 10 cm

• Electrodes N° 4 bend - straight Ø 8 mm - 5 cm

• Electrodes N° 5 hook - angled 45°

• Electrodes N° 6 wire 1 mm - angled 45°

• Electrodes N° 7 straight slip-knot - straight

• Electrodes N° 8 angled slip-knot - straight

• Electrodes N° 9 ball point - angled 45°

• Gima single use Mb handle - sterile

• Jansen bayonet bipolar forceps 17.8 cm - 1 mm point

• Loop electrode n° 34 - disposable - sterile - 15 cm

• Loop electrode N° 51 15×8 mm - autoclavable

• Loop electrode N° 52 20×10 mm - autoclavable

• MB AUTOCLAVABLE HANDLE 100 times

• Mc- Pherson forceps 10,2 cm - 0.5 mm point

• METAL PLATE - without cable

• Metzenbaum monopolar scissors - curved - 18 cm

• Metzenbaum monopolar scissors - straight - 18 cm

• Microsurgery handle

• Monopolar scissors - 18 cm

• Needle electrode N° 35 - 15 cm

• Needle electrode N°15 - 7 cm

• Needle electrodes N° 35 - 15 cm

• New bipolar adaptor for MB 122, 160, 200, 202

• REM rubber plate 20 × 15cm - without cable (for 200,202,240,380)

• Semkin forceps 14 cm - 0.5 mm point

• Set 10 electrodes - 5 cm

• Set of 10 electrodes - 10 cm

• Square loop electrode N° 50 10×8 mm - autoclavable

• Star autoclavable handle 30 times

• Straight bipolar forceps 18 cm - 1 mm point

• Straight forceps with irrigation - 18 cm - 1 mm point

• Straight monopolar forceps - 15 cm

• Waterproof footswitch for electrosurgical units 50, 80, MB120, 122, 132, 160, 200, 202 – 2 m

Standard equipment

  • 1 sterilizable handpiece with push buttons
  • 1 handpiece for microsurgery
  • 1 kit of 10 assorted electrodes, length 5 cm
  • 1 kit of 10 needles for microsurgery/hair removal
  • 3 blade electrodes, length 7 cm
  • 3 needle electrodes, length 7 cm
  • 3 ball electrodes, length 6 cm, Ø 4 mm
  • 1 neutral electrode connection cable
  • 1 stainless steel neutral electrode, 120 × 160 mm
  • 2 disposable split neutral electrodes
  • 2 disposable neutral electrodes
  • 1 waterproof single footswitch
  • 1 power cable, 5 m, 3×1.5 mm²
Note:
The bipolar cable and forceps are not included in the standard equipment of the device and can be found among accessories. Due to the wide variety of available forceps and their high cost, we have chosen to let the user select the model they prefer. The forceps and cables, manufactured in Germany, are autoclave-sterilizable and compatible with most electrosurgical units on the market.



Technical information

  • Max CUT Power: 120 W → 250 Ω
  • Max BLEND Power: 90 W → 200 Ω
  • Max ENHANCED Power: 90 W → 250 Ω
  • Max FORCED COAG Power: 80 W → 150 Ω
  • Max SOFT COAG Power: 60 W → 100 Ω
  • Max BIPOLAR COAG Power: 60 W → 100 Ω
  • Operating frequency: 600 kHz
  • RF power output time: 10 – 990 ms
  • RF pulse interval: 1 – 9
  • Neutral electrode type: F
  • Selectable power supply: 115 – 230 Vac
  • Mains frequency: 50 – 60 Hz
  • Maximum power consumption: 300 VA
  • Weight: 6 kg
  • Unit dimensions (W × H × D): 370 × 144 × 319 mm
